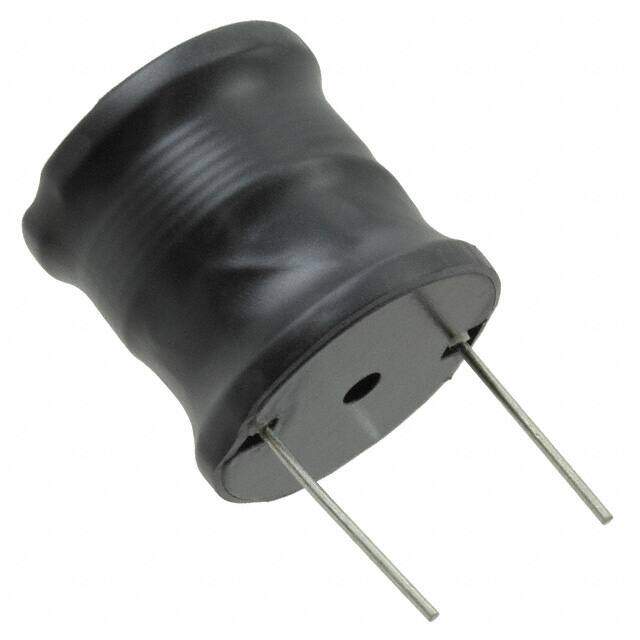

5605-RC image
Favorite
5605-RC image
Favorite

5605-RC

Bourns Inc.
RoHS
RoHS RoHS compliant
Package Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description 5600 Radial Vertical Cylinder 0.830Dia 21.08mm 100muH
PDF
/
Buying Options
Total Price: USD $25.72
Unit Price: USD $25.723358
≥1 USD $25.723358
≥10 USD $24.267315
≥100 USD $22.893691
≥500 USD $21.597824
≥1000 USD $20.375314
Inventory: 1267
Minimum: 1
-
+

Technical Details

Physical

Contact Plating Tin
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Surface Mount NO
Material - Core Ferrite
Shape/Size Description CYLINDRICAL PACKAGE

Technical

Operating Temperature -55°C~105°C
Packaging Bulk
Published 2007
Series 5600
Size / Dimension 0.830Dia 21.08mm
Tolerance ±10%
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Type Wirewound
Resistance 72mOhm
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Construction Bobbin Core
Military Standard Not
Lead Pitch 17.53mm
Lead Length 25.4mm
Lead Spacing 17.526mm
Inductance 100μH
Test Frequency 1kHz
DC Resistance (DCR) 72mOhm Max
Max DC Current 4.5A
Inductor Application HIGH CURRENT INDUCTOR
Inductance Frequency - Test 1kHz
DC Current 4.5A

Dimensions

Diameter 21.08mm
Height Seated (Max) 0.910 23.11mm

Compliance

RoHS Status ROHS3 Compliant
