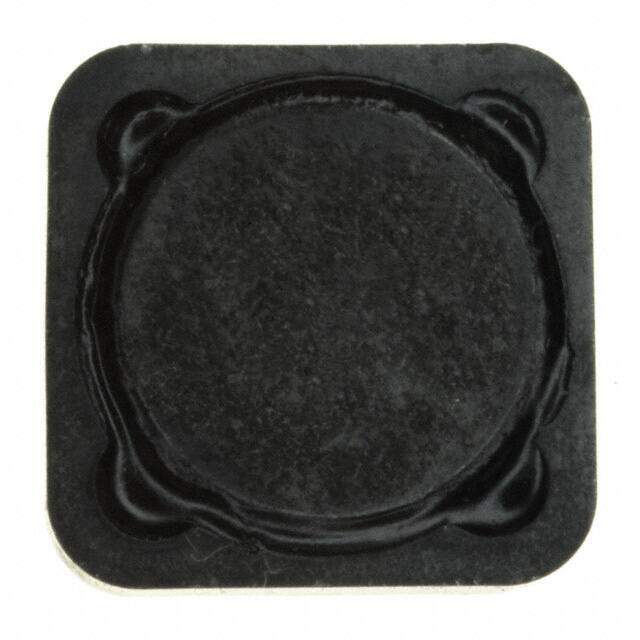

SPD127-334M image
Favorite
SPD127-334M image
Favorite

SPD127-334M

API Delevan Inc.
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description SPD127 Nonstandard 0.472Lx0.472W 12.00mmx12.00mm 330muH
PDF
/
Inventory: 9283
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 0.315 8.00mm
Height 8mm

Technical

Case/Size Code 4747
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 1A
DC Resistance (DCR) 620mOhm Max
Test Frequency 1kHz
Inductance 330μH
Current Rating 1A
Depth 12.8mm
Number of Functions 1
Shielding YES
Packing Method TR, 13 Inch
HTS Code 8504.50.80.00
Terminal Finish Tin/Lead (Sn/Pb)
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Part Status Obsolete
Pbfree Code no
JESD-609 Code e0
Tolerance ±20%
Size / Dimension 0.472Lx0.472W 12.00mmx12.00mm
Series SPD127
Published 2005
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C

Physical

Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
