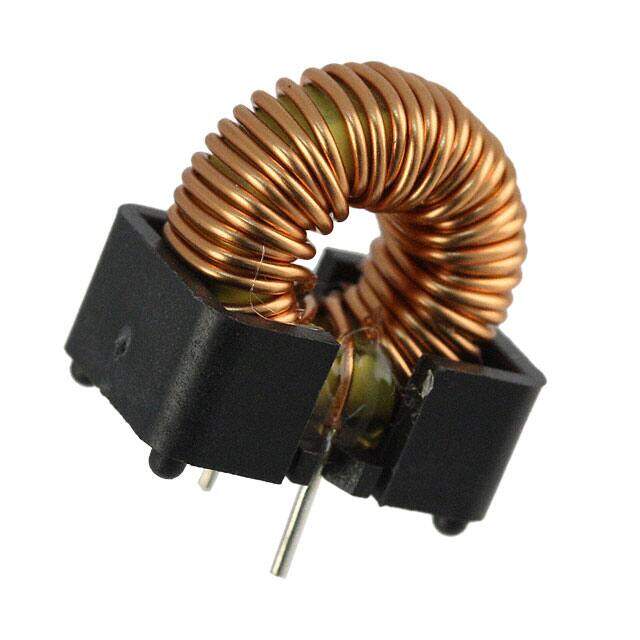

PTKM25-50
RoHS
/
Package Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Non-RoHS Compliant Toroidal Active WIRE Fixed Inductor 10MHz 20mOhm Max 25muH ±10%
PDF
/
Inventory: 3523
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Diameter 15.88mm
Technical
Current - Saturation 1A
Inductance Frequency - Test 1kHz
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 10MHz
Max DC Current 5.2A
DC Resistance (DCR) 20mOhm Max
Test Frequency 1kHz
Inductance 25μH
Lead Length 12.7mm
Lead Pitch 6.35mm
Current Rating 5.2A
Number of Functions 1
Shielding YES
HTS Code 8504.50.80.00
Terminal Finish Tin/Lead (Sn/Pb)
Type Toroidal
ECCN Code EAR99
Termination Radial
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e0
Tolerance ±10%
Size / Dimension 0.625Diax0.300W 15.87mmx7.62mm
Series PTKM
Published 2010
Packaging Bulk
Physical
Shape/Size Description CYLINDRICAL PACKAGE
Material - Core Ferrite
Terminal Shape WIRE
Package / Case Radial, Vertical (Open)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 12 Weeks
