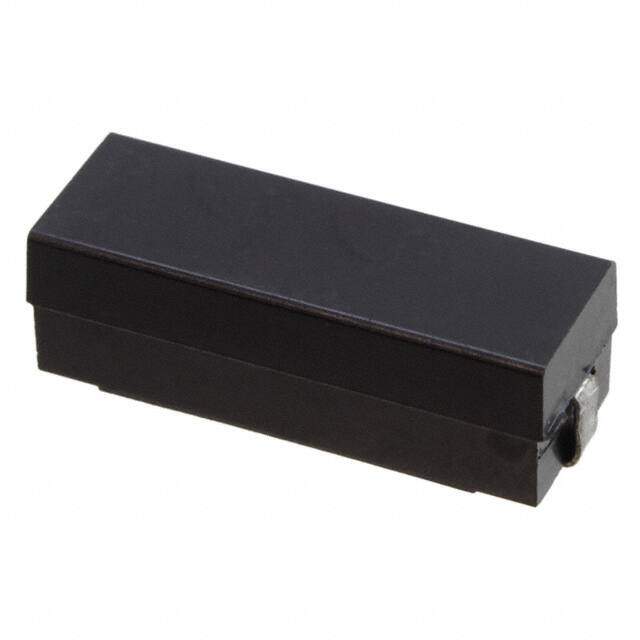

M27/370-13
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Non-RoHS Compliant Wirewound Active WRAPAROUND fixed air core inductor -55C~130C 1kHz 33mOhm Max 10muH
PDF
/
Buying Options
Total Price: USD $6.39
Unit Price: USD $6.3888
≥1 USD $6.3888
≥10 USD $5.25008
≥100 USD $4.824512
≥500 USD $4.540624
≥1000 USD $4.32784
Inventory: 616
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Height Seated (Max) 0.286 7.26mm
Technical
Special Feature REFERENCE STANDARD: MIL-PRF-27/370
Rated Current-Max 3.27A
Case/Size Code 8632
Current - Saturation 2A
Inductance Frequency - Test 1kHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
DC Resistance (DCR) 33mOhm Max
Test Frequency 0.001MHz
Inductance 10μH
Construction Epoxy Molded
Number of Functions 1
Shielding NO
Packing Method TR
Current Rating (Amps) 3.27A
HTS Code 8504.50.80.00
Terminal Finish Tin/Lead (Sn/Pb)
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e0
Tolerance ±15%
Size / Dimension 0.880Lx0.330W 22.35mmx8.38mm
Series Military, MIL-PRF-27/370, MIL8532
Published 2010
Packaging Tape & Reel (TR)
Operating Temperature -55°C~130°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 45 Weeks
