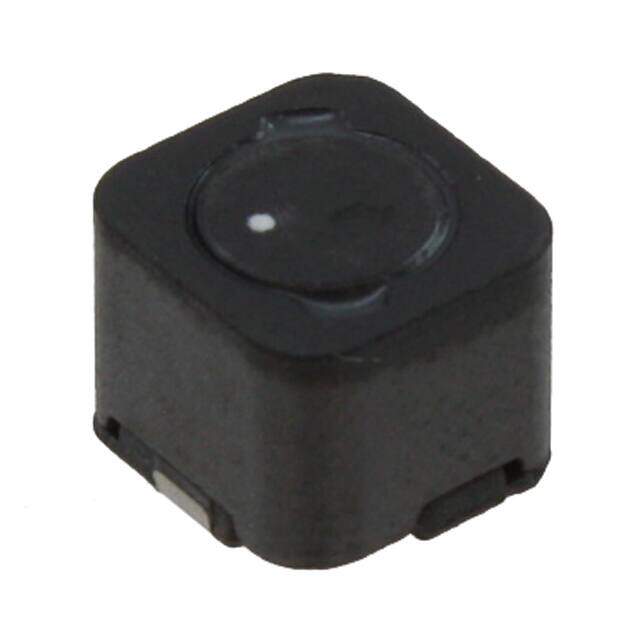

744778610 image
Favorite
744778610 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description FIXED IND 10UH 2.1A 88 MOHM SMD
PDF
/
Buying Options
Total Price: USD $2.21
Unit Price: USD $2.2088
≥1 USD $2.2088
≥10 USD $1.9712
≥100 USD $1.8304
≥500 USD $1.76
≥1000 USD $1.6896
Inventory: 1212
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 16 Weeks

Physical

Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Material - Core Ferrite

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD Robust
Size / Dimension 0.244Lx0.232W 6.20mmx5.90mm
Tolerance ±25%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Resistance 74mOhm
Current Rating (Amps) 2.1A
Shielding Shielded
Inductance 10μH
DC Resistance (DCR) 88mOhm Max
Frequency - Self Resonant 40MHz
Inductance Frequency - Test 100kHz
Current - Saturation 1.8A
Inductance Tolerance 25%

Dimensions

Height Seated (Max) 0.130 3.30mm

Compliance

RoHS Status ROHS3 Compliant
Ratings AEC-Q200
