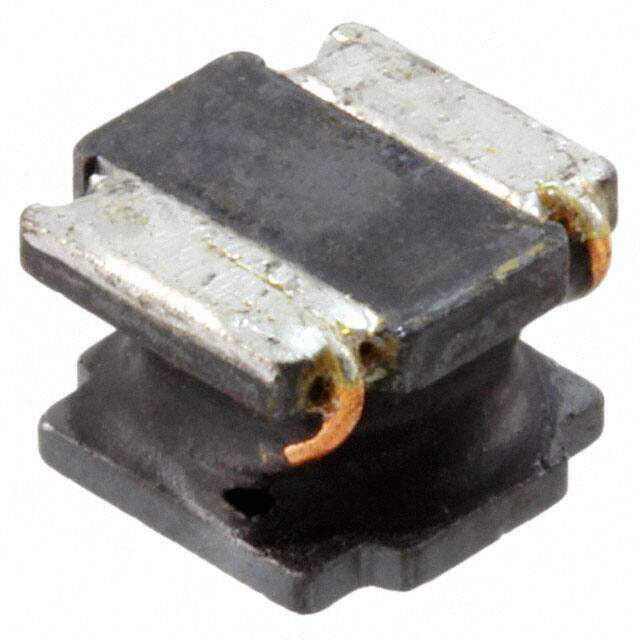

LLST-22 image
Favorite
LLST-22 image
Favorite
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description LLST Nonstandard 0.475Lx0.420W 12.07mmx10.67mm 22muH
PDF
/
Inventory: 6316
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 0.290 7.37mm
Height 7.37mm

Technical

Case/Size Code 4842
Current - Saturation 1.7A
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 25MHz
Max DC Current 1.9A
DC Resistance (DCR) 70mOhm Max
Test Frequency 1kHz
Inductance 22μH
Current Rating 1.9A
Construction Rectangular
Depth 11.17mm
Number of Functions 1
Shielding Shielded
HTS Code 8504.50.80.00
Terminal Finish Tin/Lead (Sn/Pb)
Type Toroidal
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Part Status Obsolete
Pbfree Code no
JESD-609 Code e0
Tolerance ±15%
Size / Dimension 0.475Lx0.420W 12.07mmx10.67mm
Series LLST
Published 2002
Packaging Bulk
Operating Temperature -40°C~125°C

Physical

Shape/Size Description RECTANGULAR PACKAGE
Material - Core Nickel Iron
Terminal Shape ONE SURFACE
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
