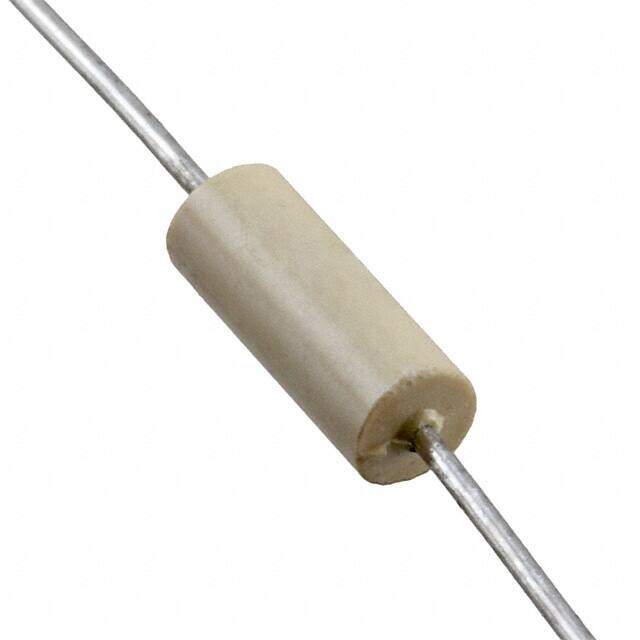

ER1025-04KR
RoHS
/
Package Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Military MIL-PRF-39010/08ER1025 Axial 0.095Diax0.250L 2.41mmx6.35mm 220nH
PDF
/
Inventory: 3983
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Length 6.35mm
Technical
Inductance Frequency - Test 25MHz
Lead/Base Style Axial
Q @ Freq 33 @ 25MHz
Frequency - Self Resonant 510MHz
Max DC Current 1.025A
DC Resistance (DCR) 140mOhm Max
Inductance 220nH
Shielding Unshielded
Current Rating (Amps) 1.025A
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Termination Axial
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Tolerance ±10%
Size / Dimension 0.095Diax0.250L 2.41mmx6.35mm
Series Military, MIL-PRF-39010/08, ER1025
Published 2012
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Material - Core Phenolic
Weight 299.994654mg
Supplier Device Package Axial
Package / Case Axial
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 16 Weeks
