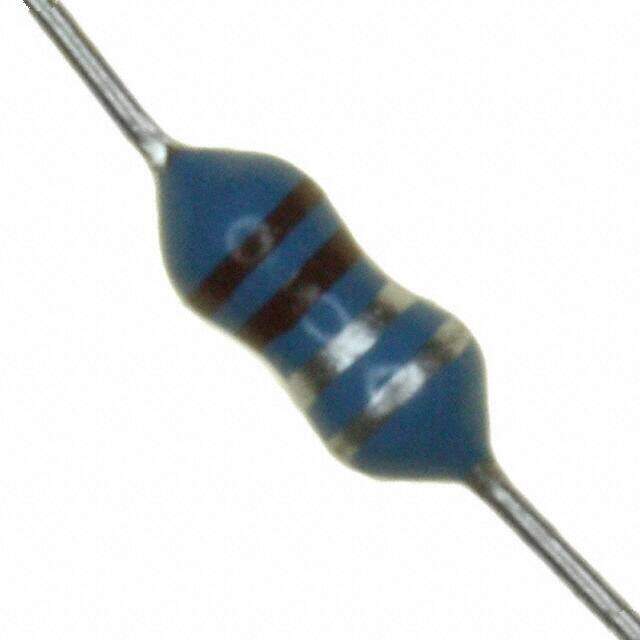

78FR22K
RoHS
/
Package Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
78F Axial 0.110Diax0.280L 2.79mmx7.11mm 220nH
PDF
/
Buying Options
Total Price: USD $0.2
Unit Price: USD $0.19813
≥1 USD $0.19813
≥200 USD $0.079063
≥500 USD $0.07641
≥1000 USD $0.075111
Inventory: 2287
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Material - Core Ferrite
Shape/Size Description TUBULAR PACKAGE
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2005
Series 78F
Size / Dimension 0.110Diax0.280L 2.79mmx7.11mm
Tolerance ±10%
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Construction Bobbin Core
Current Rating 1.025A
Lead Length 25.4mm
Inductance 220nH
Test Frequency 25MHz
DC Resistance (DCR) 80mOhm Max
Max DC Current 1.025A
Frequency - Self Resonant 380MHz
Inductor Application RF INDUCTOR
Q @ Freq 40 @ 25MHz
Quality Factor-Min (at L-nom) 40
Q Factor 40
Dimensions
Diameter 2.79mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
