2500-36H
RoHS
/
Package Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Non-RoHS Compliant Molded Active WIRE fixed air core inductor -55C~105C 2.4MHz 25Ohm Max 1.5mH
PDF
/
Inventory: 2824
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Terminal Shape WIRE
Material - Core Iron
Shape/Size Description TUBULAR PACKAGE
Technical
Operating Temperature -55°C~105°C
Packaging Tape & Reel (TR)
Published 2010
Series 2500
Size / Dimension 0.240Diax0.740L 6.10mmx18.80mm
Tolerance ±3%
JESD-609 Code e0
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
ECCN Code EAR99
Type Molded
Terminal Finish Tin/Lead (Sn60Pb40)
HTS Code 8504.50.80.00
Packing Method TR
Shielding NO
Number of Functions 1
Current Rating 76mA
Reference Standard MS90540
Lead Length 36.58mm
Inductance 1.5mH
Test Frequency 250kHz
DC Resistance (DCR) 25Ohm Max
Max DC Current 76mA
Frequency - Self Resonant 2.4MHz
Inductor Application RF INDUCTOR
Q @ Freq 65 @ 250kHz
Quality Factor-Min (at L-nom) 65
Q Factor 65
Dimensions
Diameter 5.46mm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant

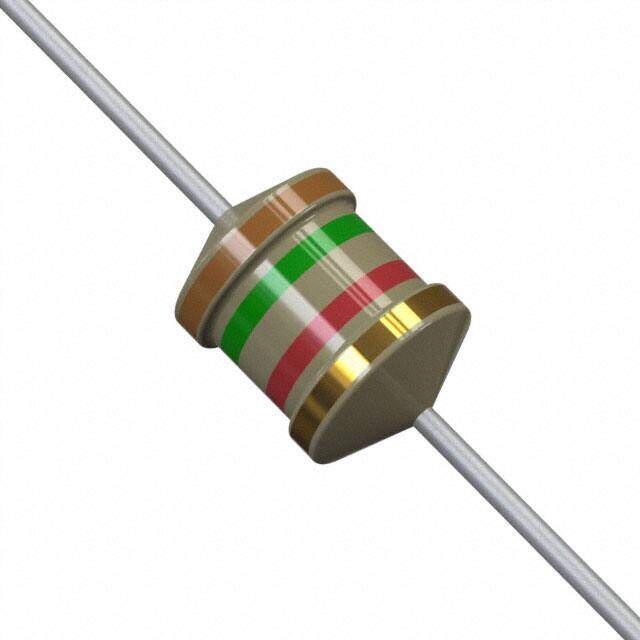

Alternative Model
