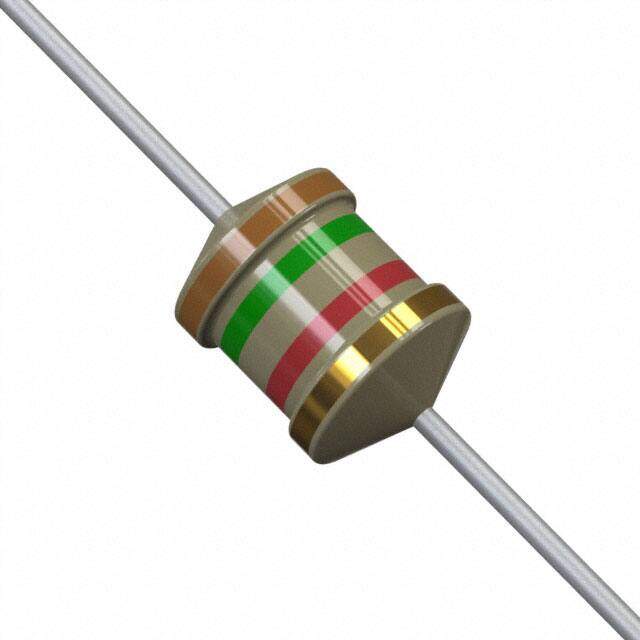

B82144F1155J000
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED INDUCT 1.5MH 230MA 6.4 OHM
PDF
/
Inventory: 7257
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Through Hole
Package / Case Axial
Material - Core Ferrite
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Series LBC
Size / Dimension 0.256Diax0.362L 6.50mmx9.20mm
Tolerance ±5%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 230mA
Shielding Unshielded
Inductance 1.5mH
DC Resistance (DCR) 6.4Ohm Max
Frequency - Self Resonant 1.9MHz
Q @ Freq 60 @ 252kHz
Inductance Frequency - Test 100kHz
Compliance
RoHS Status ROHS3 Compliant
