RoHS
/

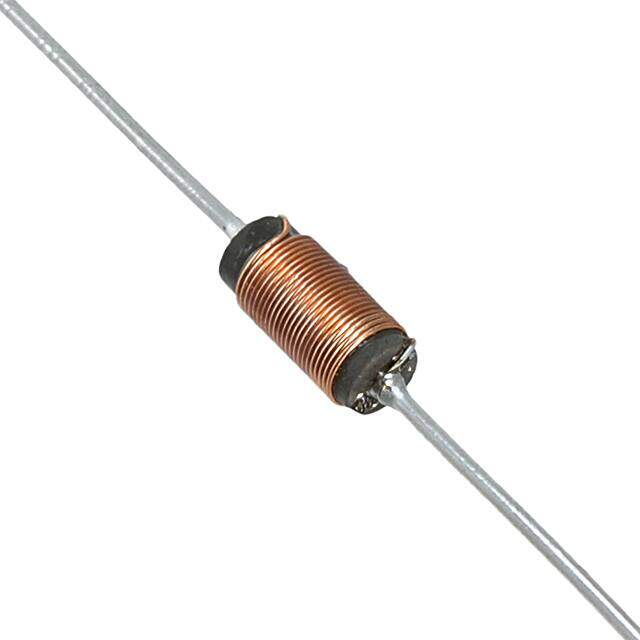

Package Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description Non-RoHS Compliant Molded Active WIRE fixed air core inductor -55C~125C 88MHz 110mOhm Max 2.7muH
PDF
/
Inventory: 7231
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 15 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Terminal Shape WIRE
Material - Core Iron
Shape/Size Description TUBULAR PACKAGE

Technical

Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2010
Series 1945
Size / Dimension 0.193Diax0.447L 4.90mmx11.35mm
Tolerance ±1%
JESD-609 Code e0
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
ECCN Code EAR99
Special Feature Q MEASURED AT 10 MHZ
Q Factor 55
Quality Factor-Min (at L-nom) 55
Q @ Freq 55 @ 10MHz
Inductor Application RF INDUCTOR
Frequency - Self Resonant 88MHz
Max DC Current 1.6A
DC Resistance (DCR) 110mOhm Max
Test Frequency 7.9MHz
Inductance 2.7μH
Lead Length 33.02mm
Current Rating 1.6A
Number of Functions 1
Shielding NO
Packing Method TR
HTS Code 8504.50.80.00
Terminal Finish Tin/Lead (Sn/Pb)
Type Molded

Compliance

RoHS Status Non-RoHS Compliant
Radiation Hardening No

Dimensions

Diameter 4.9mm
