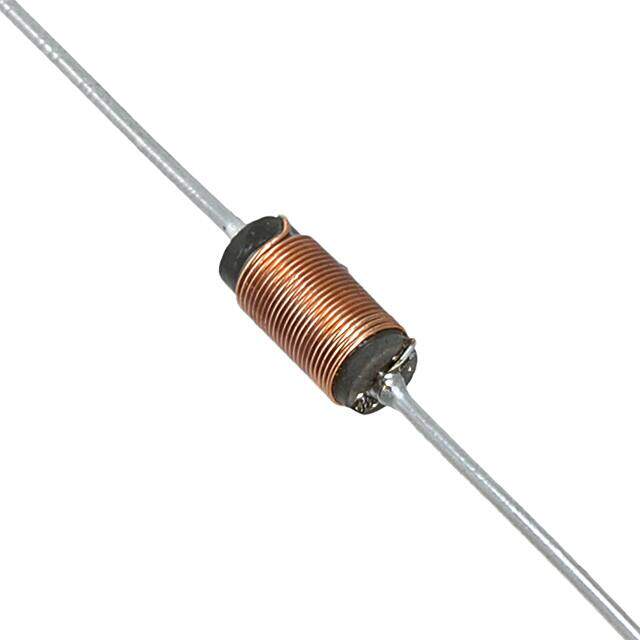

70F276AI-RC image
Favorite
70F276AI-RC image
Favorite

70F276AI-RC

Bourns Inc.
RoHS
RoHS RoHS compliant
Package Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description 70F Axial 0.160Diax0.250L 4.06mmx6.35mm 2.7muH
PDF
/
Inventory: 2851
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Number of Pins 2
Material - Core Iron

Technical

Operating Temperature -55°C~105°C
Packaging Bulk
Published 2007
Series 70F
Size / Dimension 0.160Diax0.250L 4.06mmx6.35mm
Tolerance ±10%
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding Unshielded
Current Rating 1.091A
Military Standard Not
Lead Diameter 635 μm
Inductance 2.7μH
Test Frequency 7.9MHz
DC Resistance (DCR) 168mOhm Max
Max DC Current 1.091A
Frequency - Self Resonant 74MHz
Q @ Freq 34 @ 7.9MHz
Q Factor 34
DC Current 1.091A

Dimensions

Diameter 4.06mm

Compliance

RoHS Status ROHS3 Compliant
