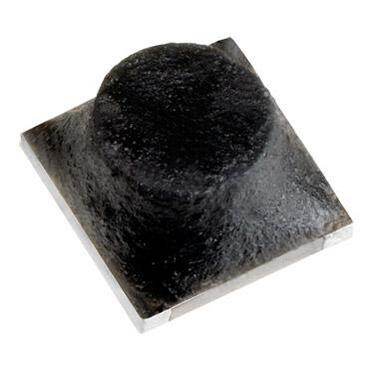

160-273JS image
Favorite
160-273JS image
Favorite

160-273JS

API Delevan Inc.
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description Fixed Inductors 27uH 5% 6.1ohm Chip SMT Inductor
PDF
/
Inventory: 7782
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 0.080 2.03mm
Height 2.03mm

Technical

Case/Size Code 1613
Q Factor 47
Inductor Type GENERAL PURPOSE INDUCTOR
Quality Factor-Min (at L-nom) 47
Q @ Freq 47 @ 2.5MHz
Terminal Placement DUAL ENDED
Inductor Application RF INDUCTOR
Frequency - Self Resonant 17MHz
Max DC Current 145mA
DC Resistance (DCR) 6.1Ohm Max
Test Frequency 2.5MHz
Inductance 27μH
Current Rating 145mA
Construction Chip
Depth 3.18mm
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Terminal Finish Tin/Lead (Sn63Pb37)
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Part Status Active
Pbfree Code no
JESD-609 Code e0
Tolerance ±5%
Size / Dimension 0.150Lx0.120W 3.81mmx3.05mm
Series 160
Published 2002
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Shape/Size Description RECTANGULAR PACKAGE
Material - Core Iron
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 15 Weeks
