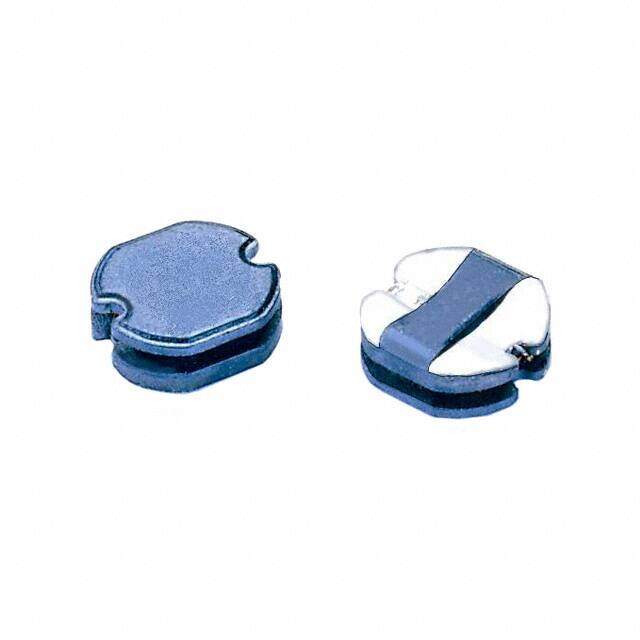

SC104-270
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Active 2009 Tape & Reel (TR) fixed air core inductor -40C~125C 2.52MHz 100mOhm Max 27muH
PDF
/
Inventory: 9186
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2009
Series SC104
Size / Dimension 0.406Lx0.366W 10.30mmx9.30mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Current Rating (Amps) 2.05A
Shielding Unshielded
Current Rating 1.44A
Inductance 27μH
Test Frequency 2.52MHz
DC Resistance (DCR) 100mOhm Max
Inductance Frequency - Test 2.52MHz
Current - Saturation 1.44A
Dimensions
Height 4.2926mm
Height Seated (Max) 0.169 4.30mm
Length 10.3124mm
Width 9.2964mm
Compliance
RoHS Status ROHS3 Compliant
