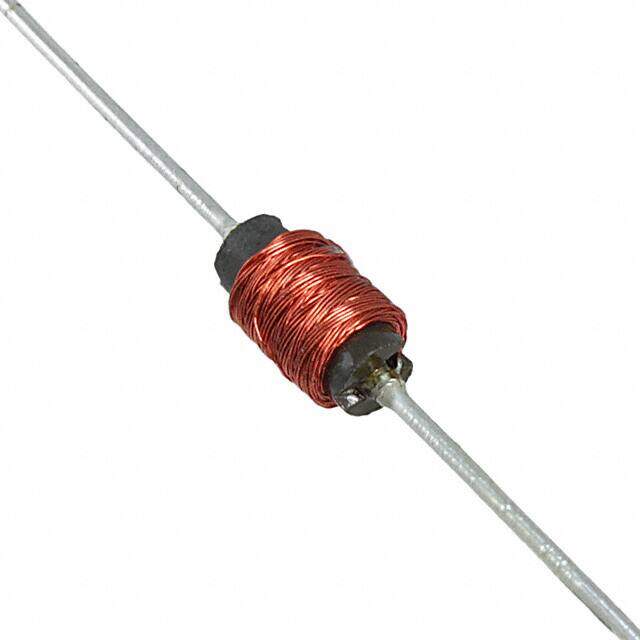

1025-76K image
Favorite
1025-76K image
Favorite
RoHS
/
Package Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description Non-RoHS Compliant Active Axial Contains Lead fixed air core inductor -55C~105C 9MHz 21Ohm Max 220muH
PDF
/
Buying Options
Total Price: USD $2.53
Unit Price: USD $2.5344
≥1 USD $2.5344
≥10 USD $2.15512
≥100 USD $1.986336
≥500 USD $1.77496
≥1000 USD $1.479192
≥3000 USD $1.436934
Inventory: 1487
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No

Dimensions

Length 6.35mm
Diameter 2.41mm

Technical

Q Factor 30
Inductance Frequency - Test 790kHz
Lead/Base Style Axial
Q @ Freq 30 @ 790kHz
Frequency - Self Resonant 9MHz
Max DC Current 52mA
DC Resistance (DCR) 21Ohm Max
Test Frequency 790kHz
Inductance 220μH
Lead Length 38.1mm
Current Rating 52mA
Shielding Unshielded
Current Rating (Amps) 52mA
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Termination Axial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.095Diax0.250L 2.41mmx6.35mm
Series Military, MIL-PRF-M15305, MS75085
Published 2005
Packaging Tape & Reel (TR)
Operating Temperature -55°C~105°C

Physical

Material - Core Ferrite
Weight 299.994654mg
Supplier Device Package Axial
Package / Case Axial
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 16 Weeks
