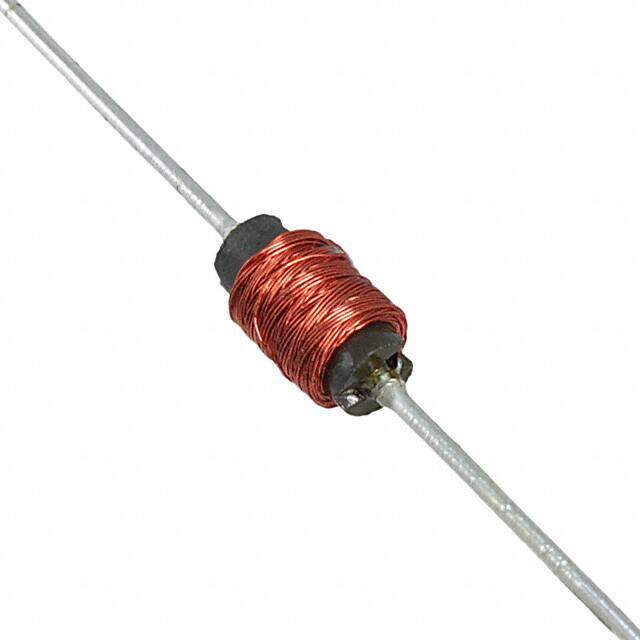

70F224AI-RC
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
70F Axial 0.170Diax0.250L 4.32mmx6.35mm 220muH
PDF
/
Inventory: 8727
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Number of Pins 2
Material - Core Iron
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2002
Series 70F
Size / Dimension 0.170Diax0.250L 4.32mmx6.35mm
Tolerance ±5%
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding Unshielded
Current Rating 114mA
Military Standard Not
Lead Diameter 635 μm
Inductance 220μH
Test Frequency 790kHz
DC Resistance (DCR) 11.5Ohm Max
Max DC Current 114mA
Frequency - Self Resonant 2.5MHz
Q @ Freq 46 @ 790kHz
Q Factor 46
Inductance Tolerance 5%
DC Current 114mA
Dimensions
Diameter 4.318mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
