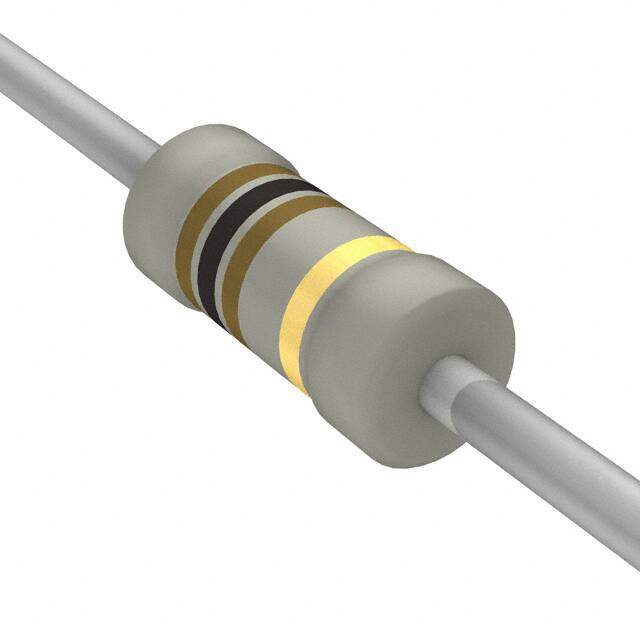

0819-72G image
Favorite
0819-72G image
Favorite
RoHS
/
Package Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description Non-RoHS Compliant Molded Active WIRE Fixed Inductor -55C~105C 9.5MHz 17.5Ohm Max 100muH
PDF
/
Inventory: 3634
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 6 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Terminal Shape WIRE
Material - Core Ferrite
Shape/Size Description TUBULAR PACKAGE

Technical

Operating Temperature -55°C~105°C
Packaging Tape & Reel (TR)
Published 2010
Series 819
Size / Dimension 0.078Diax0.200L 1.98mmx5.08mm
Tolerance ±2%
JESD-609 Code e0
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
ECCN Code EAR99
Type Molded
Terminal Finish Tin/Lead (Sn/Pb)
HTS Code 8504.50.80.00
Packing Method TR
Shielding NO
Number of Functions 1
Construction Cylindrical
Current Rating 52mA
Lead Length 38.1mm
Inductance 100μH
Test Frequency 2.5MHz
DC Resistance (DCR) 17.5Ohm Max
Max DC Current 52mA
Frequency - Self Resonant 9.5MHz
Inductor Application RF INDUCTOR
Q @ Freq 45 @ 2.5MHz
Quality Factor-Min (at L-nom) 45
Q Factor 45

Dimensions

Diameter 1.98mm

Compliance

Radiation Hardening No
RoHS Status Non-RoHS Compliant
