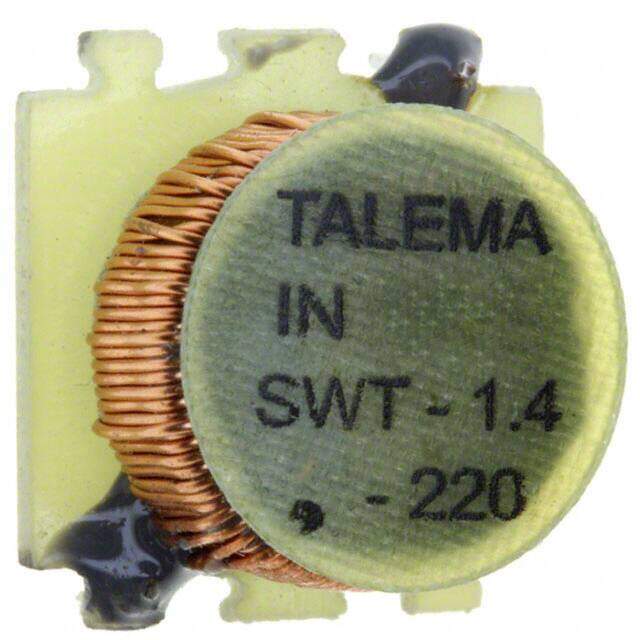

SWT-1.4-220
RoHS
RoHS compliant
RoHS compliantPackage Radial, Horizontal (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 220UH 1.4A 380 MOHM TH
PDF
/
Inventory: 7308
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Horizontal (Open)
Material - Core Iron Powder
Technical
Operating Temperature -40°C~125°C
Packaging Tray
Series SW
Size / Dimension 0.701Lx0.669W 17.80mmx17.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Toroidal
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 1.4A
Shielding Unshielded
Current Rating 1.4A
Inductance 220μH
Test Frequency 10kHz
DC Resistance (DCR) 380mOhm Max
Inductance Frequency - Test 10kHz
Dimensions
Height 10.7188mm
Height Seated (Max) 0.422 10.71mm
Length 17.8054mm
Width 16.9926mm
Compliance
RoHS Status ROHS3 Compliant
