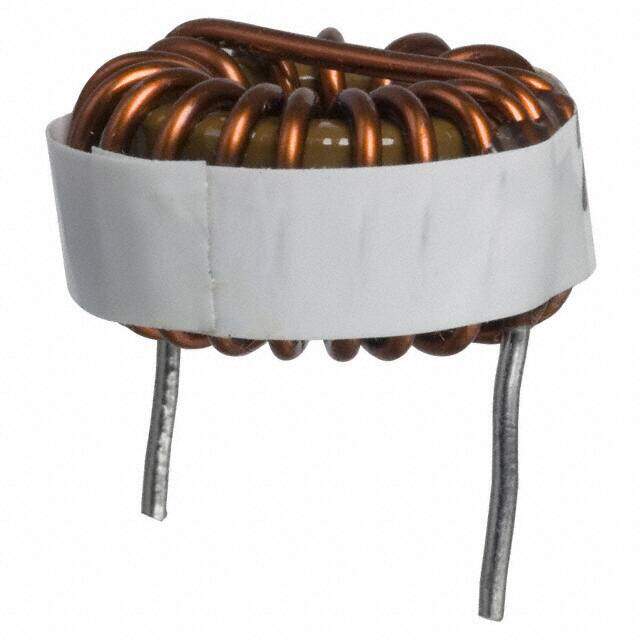

2316-H-RC

Bourns Inc.
RoHS
RoHS RoHS compliant
Package Radial, Horizontal (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description 2300 Radial Horizontal (Open) 1.280Dia 32.51mm 220muH
PDF
/
Buying Options
Total Price: USD $3.77
Unit Price: USD $3.7664
≥1 USD $3.7664
≥10 USD $3.14688
≥100 USD $2.873693
≥500 USD $2.463146
≥1000 USD $2.257851
≥3000 USD $2.189422
Inventory: 112
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 16 Weeks

Physical

Contact Plating Tin
Mount Radial, Through Hole
Mounting Type Through Hole
Package / Case Radial, Horizontal (Open)
Terminal Shape WIRE
Number of Pins 2
Material - Core Iron Powder
Shape/Size Description CYLINDRICAL PACKAGE

Technical

Operating Temperature -55°C~105°C
Packaging Bulk
Published 2002
Series 2300
Size / Dimension 1.280Dia 32.51mm
Tolerance ±15%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Toroidal
HTS Code 8504.50.80.00
Shielding YES
Number of Functions 1
Construction Hortizontal Mount
Current Rating 5.8A
Military Standard Not
Lead Pitch 29.718mm
Lead Diameter 1.0668 mm
Inductance 220μH
Test Frequency 1kHz
DC Resistance (DCR) 54mOhm Max
Max DC Current 5.8A
Inductor Application HIGH CURRENT INDUCTOR
Lead/Base Style Radial
Inductance Tolerance 15%
DC Current 5.8A
RMS Current (Irms) 5.8A
Self Resonant Frequency 1kHz

Dimensions

Diameter 32.512mm
Height 16.51mm
Height Seated (Max) 0.650 16.51mm

Compliance

REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
