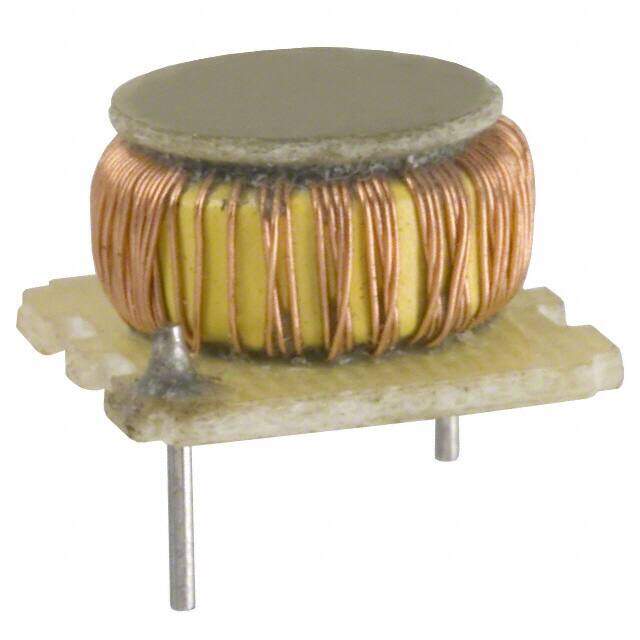

SWT-0.45-26

Amgis, LLC
RoHS
RoHS RoHS compliant
Package Radial, Horizontal (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description ROHS3Compliant Toroidal Active Bulk Fixed Inductor -40C~125C 10kHz 620mOhm 26muH
PDF
/
Inventory: 6340
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 8.6106mm
Length 8.6106mm
Height Seated (Max) 0.217 5.50mm
Height 5.4864mm

Technical

Inductance Frequency - Test 10kHz
DC Resistance (DCR) 620mOhm
Test Frequency 10kHz
Inductance 26μH
Current Rating 450mA
Shielding Unshielded
Current Rating (Amps) 450mA
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Toroidal
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.339Lx0.339W 8.60mmx8.60mm
Series SW
Packaging Bulk
Operating Temperature -40°C~125°C

Physical

Material - Core Iron Powder
Package / Case Radial, Horizontal (Open)
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 16 Weeks
