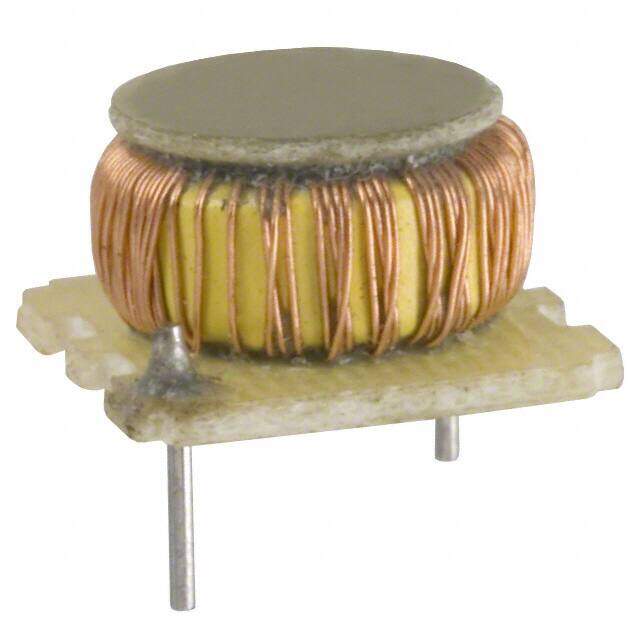

SWT-0.84-26 image
Favorite
SWT-0.84-26 image
Favorite

SWT-0.84-26

Amgis, LLC
RoHS
/
Package Radial, Horizontal (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description FIXED IND 26UH 840MA 200 MOHM TH
PDF
/
Inventory: 5709
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Horizontal (Open)
Material - Core Iron Powder

Technical

Operating Temperature -40°C~125°C
Packaging Bulk
Series SW
Size / Dimension 0.339Lx0.339W 8.60mmx8.60mm
Tolerance ±20%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Toroidal
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 840mA
Shielding Unshielded
Current Rating 840mA
Inductance 26μH
Test Frequency 10kHz
DC Resistance (DCR) 200mOhm
Inductance Frequency - Test 10kHz

Dimensions

Height 7.2898mm
Height Seated (Max) 0.287 7.30mm
Length 8.6106mm
Width 8.6106mm

Compliance

RoHS Status RoHS Compliant
