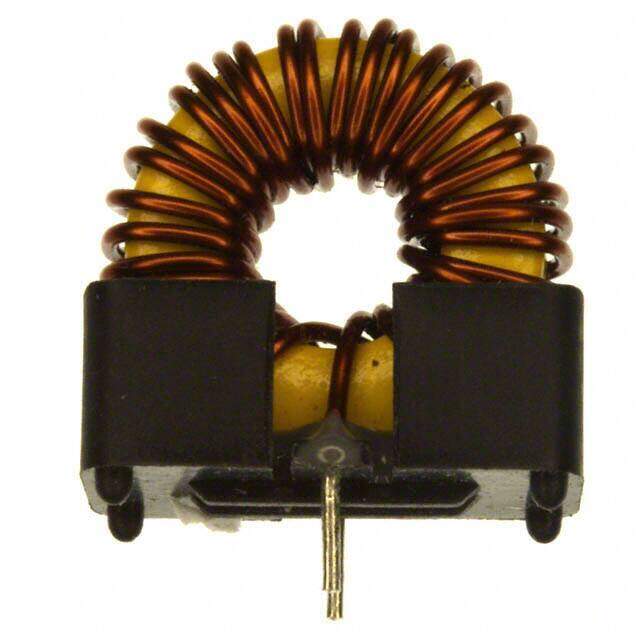

SWC-4.5-19
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 19UH 4.5A 20 MOHM TH
PDF
/
Inventory: 5586
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical (Open)
Material - Core Iron Powder
Technical
Operating Temperature -40°C~125°C
Packaging Bulk
Series SW
Size / Dimension 0.827Lx0.449W 21.00mmx11.40mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Toroidal
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 4.5A
Shielding Unshielded
Current Rating 4.5A
Inductance 19μH
Test Frequency 10kHz
DC Resistance (DCR) 20mOhm
Inductance Frequency - Test 10kHz
Dimensions
Height 23.7998mm
Height Seated (Max) 0.937 23.80mm
Length 21.0058mm
Width 11.4046mm
Compliance
RoHS Status ROHS3 Compliant
