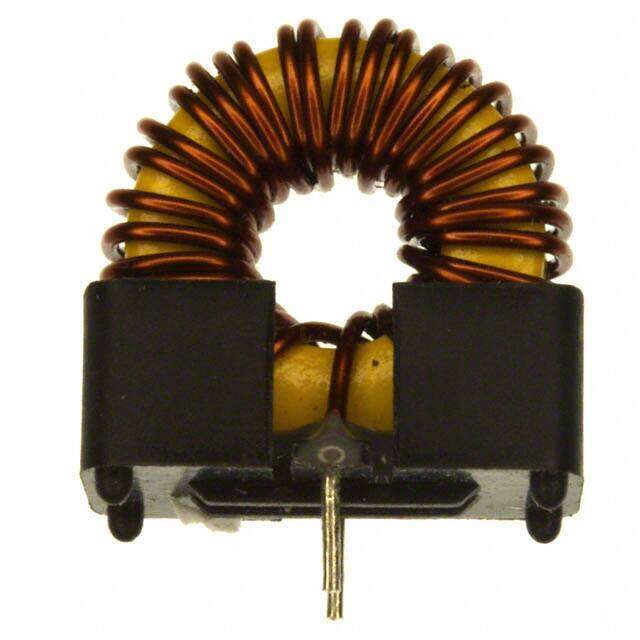

SH150C-4.50-19
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Toroidal Active Tray fixed air core inductor -40C~125C 10kHz 20mOhm 19muH
PDF
/
Buying Options
Total Price: USD $5.46
Unit Price: USD $5.4648
≥1 USD $5.4648
≥10 USD $4.42728
≥100 USD $3.935712
≥500 USD $3.7169
≥1000 USD $3.44366
≥3000 USD $3.388994
Inventory: 214
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical (Open)
Material - Core Iron Powder
Technical
Operating Temperature -40°C~125°C
Packaging Tray
Series SH150
Size / Dimension 0.827Lx0.449W 21.00mmx11.40mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Toroidal
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 4.5A
Shielding Unshielded
Current Rating 4.5A
Inductance 19μH
Test Frequency 10kHz
DC Resistance (DCR) 20mOhm
Inductance Frequency - Test 10kHz
Dimensions
Height 23.7998mm
Height Seated (Max) 0.937 23.80mm
Length 21.0058mm
Width 11.4046mm
Compliance
RoHS Status ROHS3 Compliant

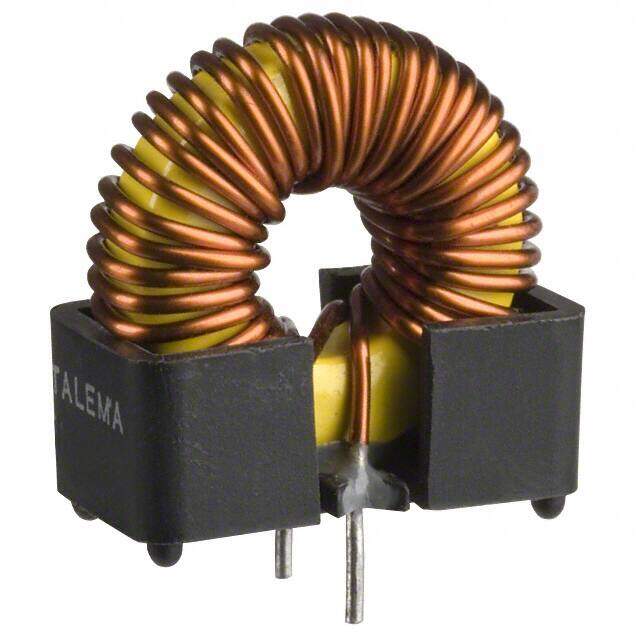

Alternative Model
