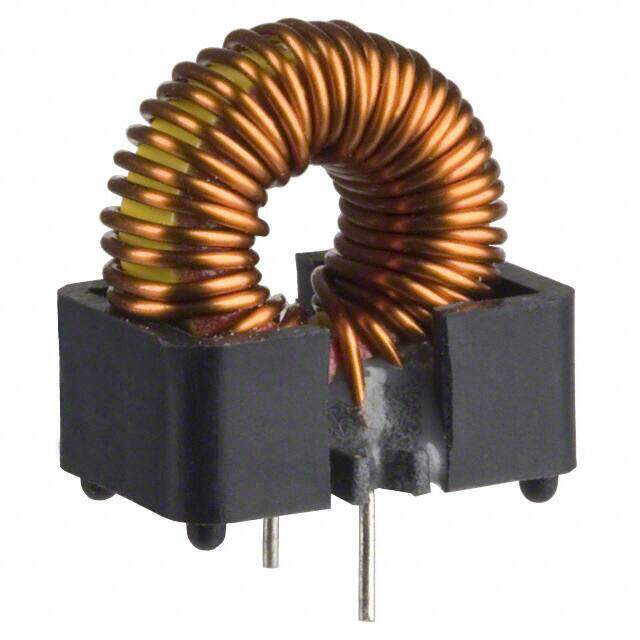

SWC-3.00-25 image
Favorite
SWC-3.00-25 image
Favorite

SWC-3.00-25

Amgis, LLC
RoHS
RoHS RoHS compliant
Package Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description FIXED IND 25UH 3A 40 MOHM TH
PDF
/
Inventory: 3352
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 11.4046mm
Length 16.51mm
Height Seated (Max) 0.760 19.30mm
Height 19.304mm

Technical

Inductance Frequency - Test 10kHz
DC Resistance (DCR) 40mOhm
Test Frequency 10kHz
Inductance 25μH
Current Rating 3A
Shielding Unshielded
Current Rating (Amps) 3A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Toroidal
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.650Lx0.449W 16.50mmx11.40mm
Series SW
Packaging Bulk
Operating Temperature -40°C~125°C

Physical

Material - Core Iron Powder
Package / Case Radial, Vertical (Open)
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 14 Weeks
