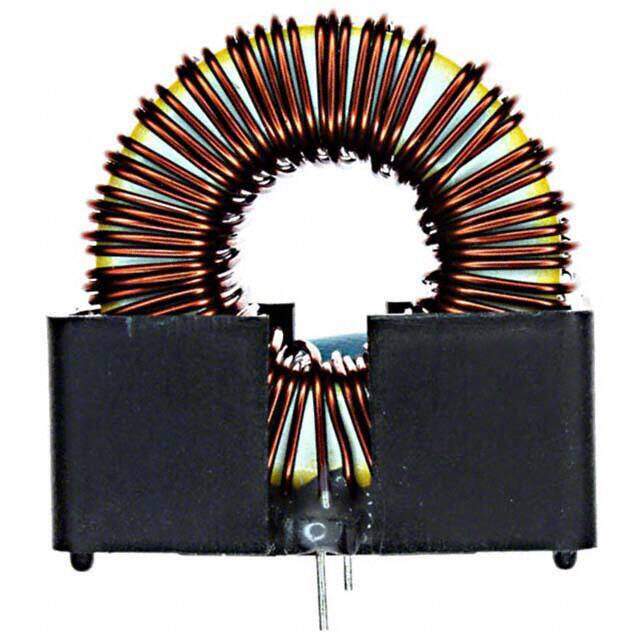

SH50C-1.4-176
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 176UH 1.4A 140 MOHM TH
PDF
/
Inventory: 5779
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical (Open)
Material - Core Iron Powder
Technical
Operating Temperature -40°C~125°C
Packaging Tray
Series SH50
Size / Dimension 0.827Lx0.449W 21.00mmx11.40mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Toroidal
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 1.4A
Shielding Unshielded
Current Rating 1.4A
Inductance 176μH
Test Frequency 10kHz
DC Resistance (DCR) 140mOhm Max
Inductance Frequency - Test 10kHz
Dimensions
Height 23.7998mm
Height Seated (Max) 0.937 23.80mm
Length 21.0058mm
Width 11.4046mm
Compliance
RoHS Status ROHS3 Compliant
