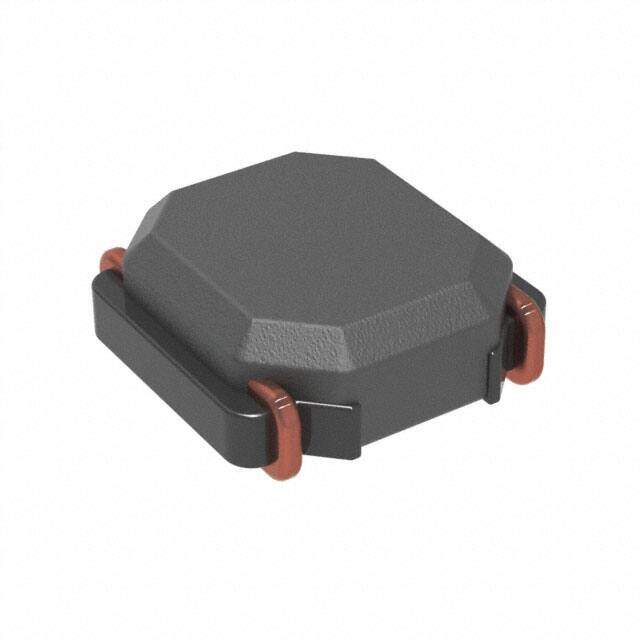

LMLP0303N2R2CTAR
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
GENERAL PURPOSE INDUCTOR ROHS3Compliant Active 8504.50.80.00 Fixed Inductor -40C~125C 100kHz 95mOhm 2.2muH
PDF
/
Inventory: 1725
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.039 1.00mm
Technical
Rated Current-Max 1.1A
Case/Size Code 1212
Inductor Type GENERAL PURPOSE INDUCTOR
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 95mOhm
Inductance 2.2μH
Construction Magnetic Shield
Shielding Shielded
Packing Method TR, 7 Inch
Current Rating (Amps) 1.1A
HTS Code 8504.50.80.00
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±30%
Size / Dimension 0.118Lx0.118W 3.00mmx3.00mm
Series LMLP
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
