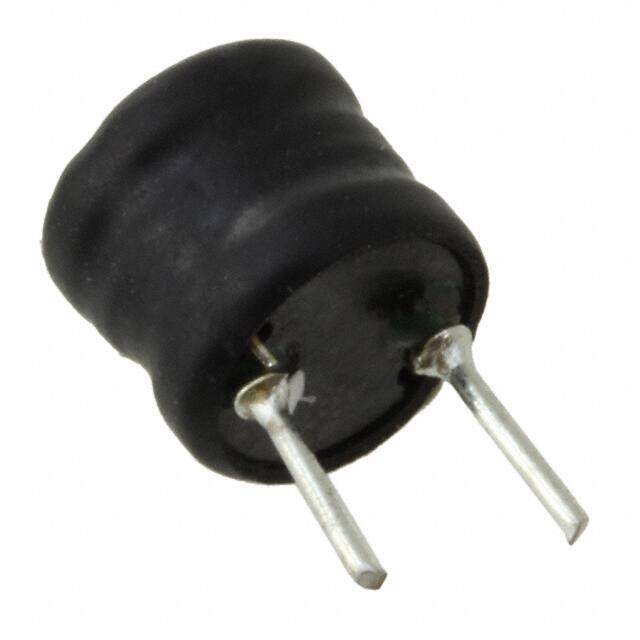

AIUR-05-470K
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
AIUR-05 Radial Vertical Cylinder 0.335Dia 8.50mm 47muH
PDF
/
Inventory: 9717
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.354 9.00mm
Height 8.5mm
Technical
Q Factor 20
Inductance Frequency - Test 2.52kHz
Quality Factor-Min (at L-nom) 20
Q @ Freq 10 @ 2.52kHz
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 8.2MHz
Max DC Current 1.1A
DC Resistance (DCR) 130mOhm Max
Test Frequency 2.52kHz
Inductance 47μH
Lead Diameter 650 μm
Lead Pitch 5mm
Current Rating 900mA
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Termination Radial
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±10%
Size / Dimension 0.335Dia 8.50mm
Series AIUR-05
Published 2007
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Shape/Size Description CYLINDRICAL PACKAGE
Material - Core Ferrite
Package / Case Radial, Vertical Cylinder
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 8 Weeks
