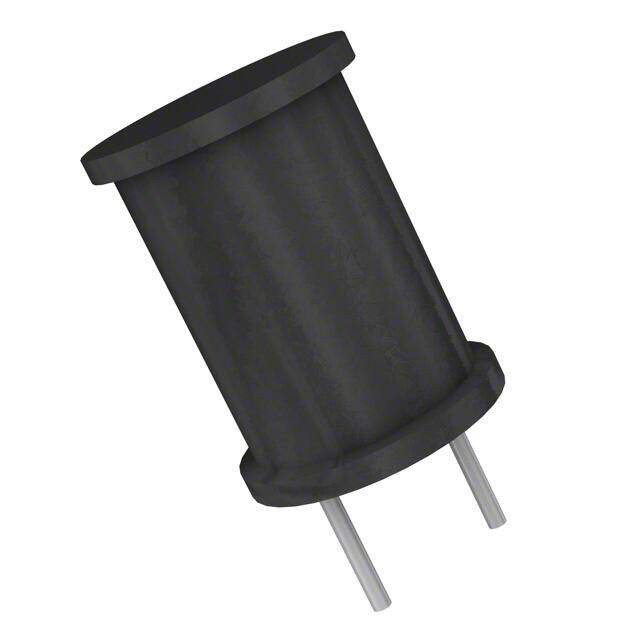

AIUR-03-560K
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
AIUR-03 Radial Vertical Cylinder 0.354Dia 9.00mm 56muH
PDF
/
Buying Options
Total Price: USD $0.4
Unit Price: USD $0.4048
≥1 USD $0.4048
≥10 USD $0.34672
≥100 USD $0.317856
≥500 USD $0.288816
≥1000 USD $0.257048
≥3000 USD $0.242634
Inventory: 487
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Material - Core Ferrite
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2007
Series AIUR-03
Size / Dimension 0.354Dia 9.00mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Type Wirewound
Max Operating Temperature 85°C
Min Operating Temperature -25°C
Composition Wirewound
Current Rating (Amps) 900mA
Shielding Unshielded
Current Rating 900mA
Lead Pitch 5mm
Lead Diameter 640 μm
Inductance 56μH
Test Frequency 2.52MHz
DC Resistance (DCR) 180mOhm Max
Max DC Current 1.3A
Frequency - Self Resonant 5.4MHz
Q @ Freq 30 @ 2.52MHz
Lead/Base Style Radial
Inductance Frequency - Test 2.52MHz
Current - Saturation 1.3A
Q Factor 30
Dimensions
Height 12mm
Height Seated (Max) 0.472 12.00mm
Length 12mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
