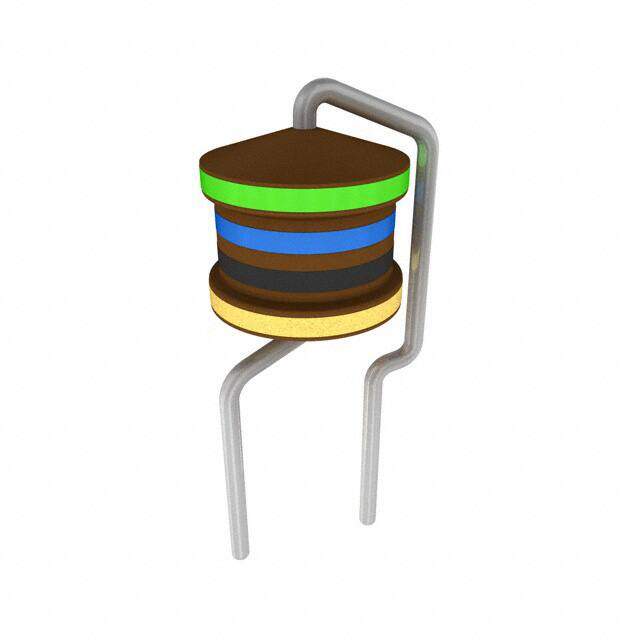

B82144B2563J000
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 56UH 1.6A 310 MOHM TH
PDF
/
Buying Options
Total Price: USD $0.55
Unit Price: USD $0.5544
≥1 USD $0.5544
≥10 USD $0.47608
≥100 USD $0.43648
≥500 USD $0.39688
≥1000 USD $0.353232
≥3000 USD $0.333344
Inventory: 5180
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder
Material - Core Ferrite
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2015
Series LBC
Size / Dimension 0.256Dia 6.50mm
Tolerance ±5%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 1.6A
Shielding Unshielded
Inductance 56μH
DC Resistance (DCR) 310mOhm Max
Frequency - Self Resonant 6.8MHz
Q @ Freq 40 @ 79.6kHz
Inductance Frequency - Test 100kHz
Current - Saturation 1.3A
Dimensions
Height Seated (Max) 0.551 14.00mm
Compliance
RoHS Status ROHS3 Compliant
