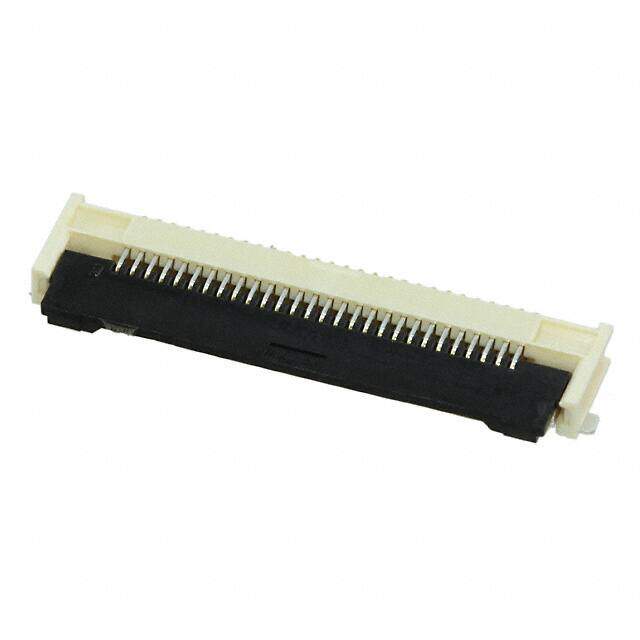

5051102891
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / FFC, FPC (Flat Flexible) Connectors
Description
CONN FFC/FPC BOTTOM 28P .5MM R/A
PDF
/
Buying Options
Total Price: USD $0.71
Unit Price: USD $0.7128
≥1 USD $0.7128
≥10 USD $0.5896
≥100 USD $0.491128
≥500 USD $0.4323
Inventory: 35994
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
FFC, FCB Thickness 0.30mm
Height Above Board 0.075 1.90mm
Plating Thickness 2μin
Contact Finish Thickness 1.97μin 0.050μm
Technical
Actuator Color Black
Locking Feature Flip Lock
Cable End Type Tabbed, Tapered
Connector/Contact Type Contacts, Bottom
Flat Flex Type FFC, FPC
Mating Cycles 25
Insertion Force-Max ZIF N
Contact Pattern RECTANGULAR
Durability 10 Cycles
Insulation Resistance 50000000Ohm
Contact Resistance 40mOhm
Contact Style BELLOWED TYPE
Body Depth 0.159 inch
Housing Color Beige
UL Flammability Code 94V-0
Contact Gender FEMALE
Body Breadth 0.075 inch
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 1
Body Length or Diameter 0.736 inch
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Total Number of Contacts 28
Pitch 0.020 0.50mm
Current Rating (Amps) 0.5A
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Voltage - Rated 50V
Number of Rows 1
Number of Positions 28
Connector Type FFC/FPC CONNECTOR
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Solder Retention, Zero Insertion Force (ZIF)
JESD-609 Code e4
Series Easy-On FD19 505110
Published 2015
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C
Physical
Board Mounting Option FITTING NAIL
Actuator Material Polyamide (PA), Nylon, Glass Filled
Mounting Option 1 LOCKING
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Mounting Type Surface Mount, Right Angle
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 17 Weeks
