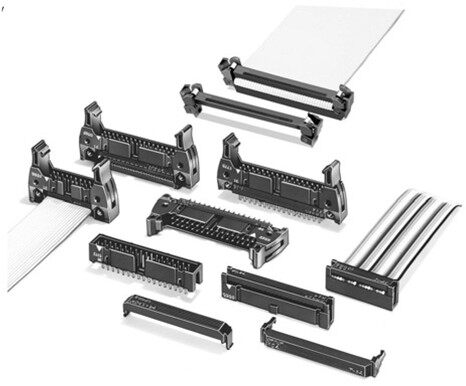

XG4A-5075
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings Plug ShortLock 50P RightAngle 2Polarize
PDF
/
Inventory: 8947
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Contact Material Brass, Nickel
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Housing Material PBT
Technical
Operating Temperature -55°C~105°C
Packaging Bulk
Published 2002
Series XG4
JESD-609 Code e3
Feature Keying Slot, Mounting Flange
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 50
Number of Rows 2
Fastening Type Latch Lock/Eject Hooks, Short
Contact Finish - Mating Gold
Contact Type Male Pin
Max Current Rating 3A
Max Voltage Rating (AC) 300V
Insulation Resistance 1GOhm
Contact Resistance 20mOhm
Contact Gender Male
Contact Length - Mating 0.240 6.10mm
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.126 3.20mm
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.335 8.51mm
Orientation Right Angle
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 78.7μin 2.00μm
Contact Finish Thickness - Mating 5.90μin 0.150μm
