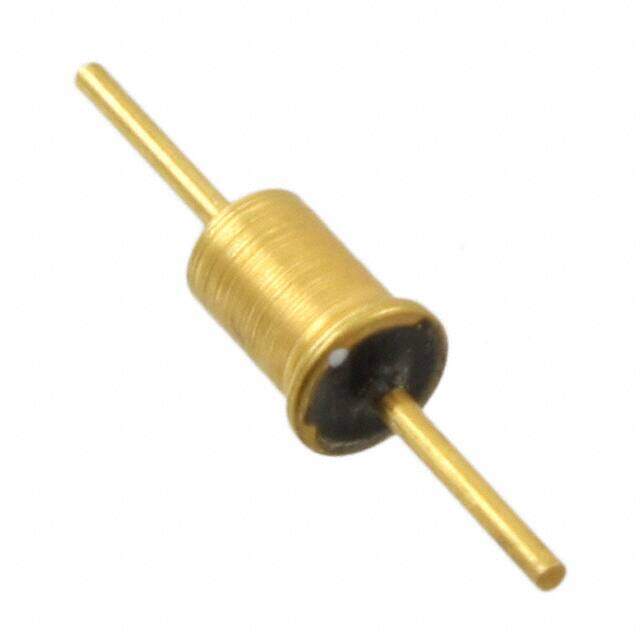

SCI-9980-101 image
Favorite
SCI-9980-101 image
Favorite

SCI-9980-101

API Technologies Corp
RoHS
/
Package Axial, Eyelet
Category Filters / EMI/RFI Filters (LC, RC Networks)
Description EMI Feedthrough Filters MINI L CRCTSOLDER 10DC 200V 100PF
PDF
/
Inventory: 8788
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Through Hole
Mounting Type Custom
Package / Case Axial, Eyelet

Technical

Operating Temperature -55°C~125°C
Packaging Bulk
Published 2014
Series 9900
Size / Dimension 0.156Diax0.200L 3.96mmx5.08mm
JESD-609 Code e4
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Low Pass
Terminal Finish GOLD
Applications Microwave
Voltage - Rated 200V
Additional Feature L-TYPE CIRCUIT
HTS Code 8504.50.80.00
Capacitance 100pF
Packing Method BAG
Technology LC
Number of Functions 1
Number of Channels 1
DC Resistance (DCR) 10mOhm
Max DC Current 10A
ESD Protection No
Attenuation Value 5dB @ 100MHz
Insertion Loss (Max) 35 dB
Filter Order 2nd
Values C = 100pF
Resistance - Channel (Ω) 0.01

Dimensions

Diameter 3.96mm
Height 5.08mm

Compliance

RoHS Status RoHS Compliant
