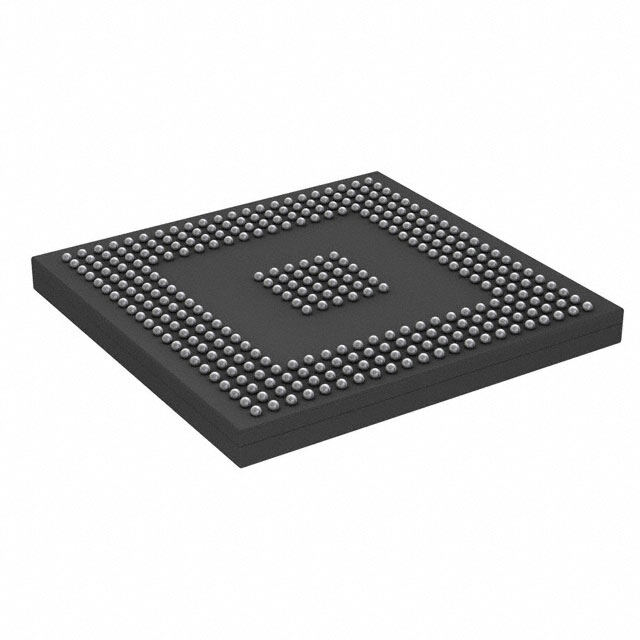

R7S721011VCBG#AC0
RoHS
RoHS compliant
RoHS compliantPackage 324-BGA
Category Integrated Circuits (ICs) / Embedded - Microprocessors
Description
IC MCU 32BIT ROMLESS 324FBGA
PDF
/
Buying Options
Total Price: USD $25.44
Unit Price: USD $25.4408
≥1 USD $25.4408
≥10 USD $23.46168
≥100 USD $22.407616
≥500 USD $20.034978
≥1000 USD $19.112306
Inventory: 989
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Package / Case 324-BGA
Surface Mount YES
Number of Pins 324
Technical
Operating Temperature -40°C~85°C TA
Packaging Tray
Series RZ/A1M
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 324
Terminal Position BOTTOM
Terminal Form BALL
Supply Voltage 1.18V
Terminal Pitch 0.8mm
Frequency 400MHz
Pin Count 324
Supply Voltage-Max (Vsup) 1.26V
Supply Voltage-Min (Vsup) 1.1V
Interface CAN, EBI/EMI, I2C, LIN, MMC, SCI, SD, SPI, UART, USART, USB
Oscillator Type External
Number of I/O 147
Memory Type ROMless
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor ARM? Cortex?-A9
Peripherals DMA, POR, PWM, WDT
Bit Size 32
Has ADC YES
DMA Channels YES
PWM Channels YES
Address Bus Width 26
Core Architecture ARM
External Data Bus Width 32
Voltage - I/O 1.2V 3.3V
Ethernet 10/100Mbps (1), 100Mbps (1)
Number of Cores/Bus Width 1 Core 32-Bit
Graphics Acceleration Yes
RAM Controllers SDRAM, SRAM
USB USB 2.0 (2)
Additional Interfaces CAN, I2C, IEBus, IrDA, LIN, MediaLB, MMC/SD/SDIO, SCI, SCI FIFO, SPDIF, SPI, SSI
Co-Processors/DSP Multimedia; NEON? MPE
Display & Interface Controllers DVD, VDC
Dimensions
Length 19mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
