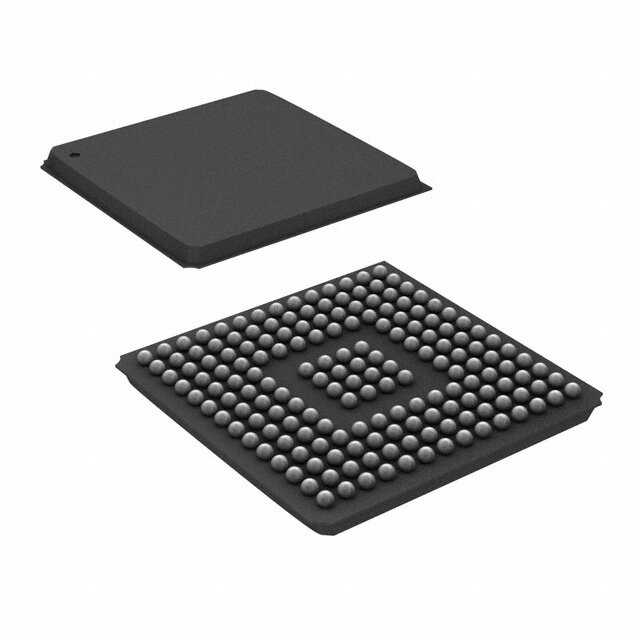

SM320F28335GJZMEP
RoHS
/
Package 176-BGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
Digital Signal Processors & Controllers - DSP, DSC EP Digital Signal Controller
PDF
/
Buying Options
Total Price: USD $58.07
Unit Price: USD $58.0712
≥1 USD $58.0712
≥10 USD $54.55472
≥100 USD $52.79472
≥500 USD $48.923107
Inventory: 296
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Thickness 1.16mm
Width 15mm
Length 15mm
Height 2.05mm
Technical
Internal Bus Architecture MULTIPLE
Barrel Shifter NO
Number of UART Channels 3
Format FLOATING POINT
Number of Programmable I/O 88
Number of A/D Converters 16
Low Power Mode YES
Boundary Scan YES
Core Architecture TMS320
PWM Channels YES
Data Bus Width 32b
Watchdog Timer Yes
Data Converter A/D 16x12b
Connectivity CANbus, EBI/EMI, I2C, McBSP, SCI, SPI, UART/USART
Program Memory Size 512KB 256K x 16
Core Size 32-Bit
Program Memory Type FLASH
Peripherals DMA, POR, PWM, WDT
Core Processor C28x
uPs/uCs/Peripheral ICs Type DIGITAL SIGNAL PROCESSOR, OTHER
Voltage - Supply (Vcc/Vdd) 1.805V~1.995V
RAM Size 34K x 16
Nominal Supply Current 50μA
Oscillator Type Internal
Memory Size 512kB
Interface CAN, EBI/EMI, I2C, SCI, SPI, UART, USART
Supply Voltage-Max (Vsup) 1.995V
Operating Supply Voltage 3.3V
Pin Count 176
Base Part Number 320F28335
Frequency 150MHz
Terminal Pitch 0.5mm
Supply Voltage 1.9V
Peak Reflow Temperature (Cel) 235
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Terminal Finish Tin/Lead (Sn/Pb)
Number of Terminations 176
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e0
Series C2000? C28x Delfino?
Packaging Tray
Operating Temperature -55°C~125°C TA
Physical
Number of Pins 176
Package / Case 176-BGA
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 6 Weeks
