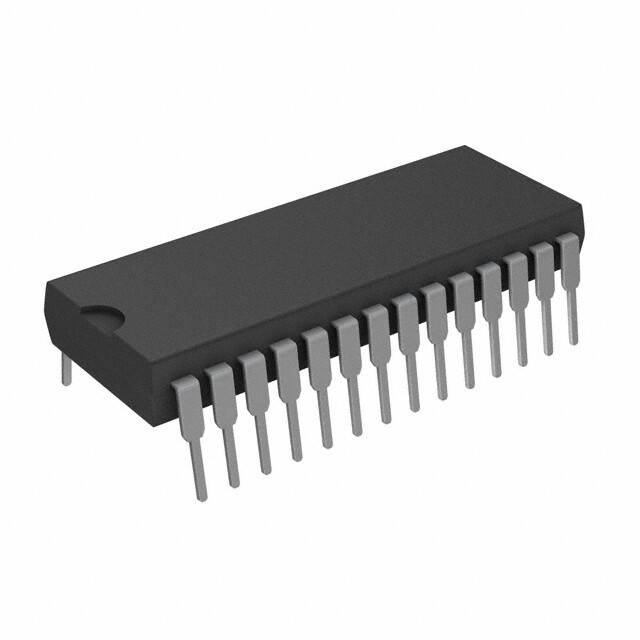

LM4651N
RoHS
/
Package /
Category Integrated Circuits (ICs) / Linear - Amplifiers - Audio
Description
THROUGH-HOLE RoHS Compliant Contains Lead AUDIO AMPLIFIER audio amplifier 85C 30kHz 170W 45mA
PDF
/
Buying Options
Total Price: USD $10.74
Unit Price: USD $10.73975
≥1 USD $10.73975
≥10 USD $8.8122
≥100 USD $8.5367
≥500 USD $8.2612
≥1000 USD $7.9857
Inventory: 18
Minimum: 1
-
+
Technical Details
Physical
Surface Mount NO
Number of Pins 28
Technical
Published 2004
JESD-609 Code e0
Moisture Sensitivity Level (MSL) 1
Number of Terminations 28
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn85Pb15)
HTS Code 8542.33.00.01
Subcategory Other Consumer ICs
Technology BIPOLAR
Terminal Position DUAL
Terminal Form THROUGH-HOLE
Peak Reflow Temperature (Cel) NOT APPLICABLE
Number of Functions 1
Terminal Pitch 2.54mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Qualification Status Not Qualified
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Supply Voltage-Max (Vsup) 22V
Power Supplies +-22V
Temperature Grade INDUSTRIAL
Supply Voltage-Min (Vsup) 11V
Number of Channels 1
Supply Current-Max 45mA
Output Power 170W
Bandwidth 30 kHz
Consumer IC Type AUDIO AMPLIFIER
Harmonic Distortion 10%
Dimensions
Height Seated (Max) 5.334mm
Length 35.725mm
Width 15.24mm
Compliance
RoHS Status RoHS Compliant
Lead Free Contains Lead
