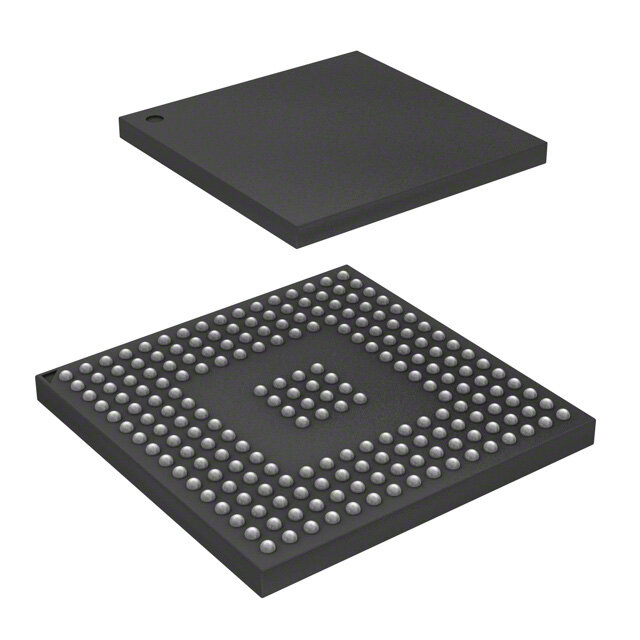

MAC7131MVF40
RoHS
/
Package 208-BGA
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
ARM7? MAC7xxx Microcontroller IC 32-Bit 40MHz 544KB (544K x 8) FLASH 208-MAPBGA (17x17)
PDF
/
Buying Options
Total Price: USD $21.48
Unit Price: USD $21.47855
≥1 USD $21.47855
≥10 USD $17.62345
≥100 USD $17.07245
≥500 USD $16.5224
≥1000 USD $15.9714
Inventory: 1145
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 208-BGA
Surface Mount YES
Technical
Operating Temperature -40°C~125°C TA
Packaging Tray
Published 2013
Series MAC7xxx
JESD-609 Code e0
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 208
ECCN Code 3A991.A.2
Terminal Finish Tin/Lead (Sn/Pb)
Additional Feature ALSO REQUIRES 5V SUPPLY
HTS Code 8542.31.00.01
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 240
Supply Voltage 2.5V
Terminal Pitch 1mm
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number MAC7131
JESD-30 Code S-PBGA-B208
Qualification Status Not Qualified
Supply Voltage-Max (Vsup) 2.75V
Supply Voltage-Min (Vsup) 2.35V
Oscillator Type Internal
Number of I/O 128
Speed 40MHz
RAM Size 32K x 8
Voltage - Supply (Vcc/Vdd) 2.35V~5.5V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor ARM7?
Peripherals DMA, POR
Clock Frequency 50MHz
Program Memory Type FLASH
Core Size 32-Bit
Program Memory Size 544KB 544K x 8
Connectivity CANbus, EBI/EMI, I2C, SCI, SPI
Bit Size 32
Data Converter A/D 32x8/10b
Has ADC YES
DMA Channels YES
PWM Channels NO
DAC Channels NO
EEPROM Size 32K x 8
Dimensions
Height Seated (Max) 2mm
Length 17mm
Width 17mm
Compliance
RoHS Status Non-RoHS Compliant
