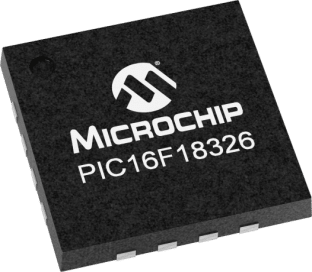

PIC16F18326-E/JQVAO
RoHS
RoHS compliant
RoHS compliantPackage 16-UQFN Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
28KB 2KB RAM 256B EEPROM 10B ADC
PDF
/
Buying Options
Total Price: USD $4.03
Unit Price: USD $4.028
≥1 USD $4.028
≥10 USD $3.30505
≥100 USD $3.2015
≥500 USD $3.09795
≥1000 USD $2.99535
Inventory: 56
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 4mm
Length 4mm
Height Seated (Max) 0.55mm
Technical
On Chip Data RAM Width 8
Number of External Interrupts 1
Number of Timers 7
Number of Serial I/Os 1
RAM (bytes) 2048
RAM (words) 2048
Integrated Cache NO
Format FIXED POINT
Low Power Mode YES
Boundary Scan NO
On Chip Program ROM Width 14
EEPROM Size 256 x 8
ROM (words) 16384
DAC Channels YES
PWM Channels YES
DMA Channels NO
Has ADC YES
Data Converter A/D 11x10b
Bit Size 8
Supply Current-Max 2.9mA
Connectivity I2C, LINbus, SPI, UART/USART
Program Memory Size 28KB 16K x 14
Core Size 8-Bit
Program Memory Type FLASH
Clock Frequency 32MHz
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Core Processor PIC
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Voltage - Supply (Vcc/Vdd) 2.3V~5.5V
RAM Size 2K x 8
Speed 32MHz
Number of I/O 12
Oscillator Type Internal
Supply Voltage-Min (Vsup) 2.3V
Supply Voltage-Max (Vsup) 5.5V
JESD-30 Code S-PQCC-N16
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code compliant
Terminal Pitch 0.65mm
Supply Voltage 3V
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form NO LEAD
Terminal Position QUAD
Technology CMOS
Terminal Finish Matte Tin (Sn)
Number of Terminations 16
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Series Automotive, AEC-Q100, PIC? XLP? 16F
Operating Temperature -40°C~125°C TA
Physical
Surface Mount YES
Package / Case 16-UQFN Exposed Pad
Mounting Type Surface Mount
