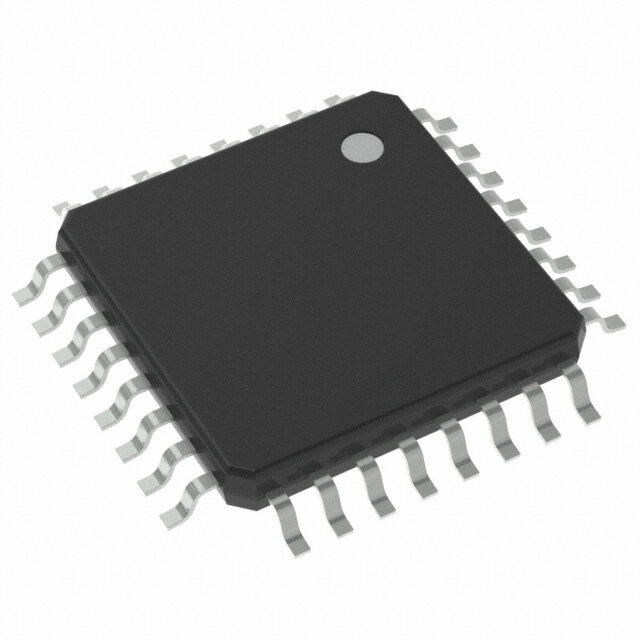

ATMEGA808-AFR
RoHS
RoHS compliant
RoHS compliantPackage 32-TQFP
Category Integrated Circuits (ICs) / Embedded - Microcontrollers
Description
20MHZ 8KB TQFP32
PDF
/
Buying Options
Total Price: USD $1.19
Unit Price: USD $1.188
≥1 USD $1.188
≥10 USD $1.0736
≥100 USD $0.9768
Inventory: 2014
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 22 Weeks
Physical
Mounting Type Surface Mount
Package / Case 32-TQFP
Surface Mount YES
Technical
Operating Temperature -40°C~125°C TA
Packaging Tape & Reel (TR)
Series megaAVR? 0
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 32
Additional Feature OPERATES 1.8V MINIMUM SUPPLY AT 8MHZ
Technology CMOS
Terminal Position QUAD
Terminal Form GULL WING
Peak Reflow Temperature (Cel) NOT SPECIFIED
Supply Voltage 5V
Terminal Pitch 0.8mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code S-PQFP-G32
Supply Voltage-Max (Vsup) 5.5V
Supply Voltage-Min (Vsup) 4.5V
Oscillator Type Internal
Number of I/O 27
Speed 20MHz
RAM Size 1K x 8
Voltage - Supply (Vcc/Vdd) 1.8V~5.5V
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor AVR
Peripherals Brown-out Detect/Reset, POR, WDT
Clock Frequency 20MHz
Program Memory Type FLASH
Core Size 8-Bit
Program Memory Size 8KB 8K x 8
Connectivity I2C, SPI, UART/USART
Data Converter A/D 12x10b
Has ADC YES
DMA Channels NO
PWM Channels NO
DAC Channels NO
EEPROM Size 256 x 8
On Chip Program ROM Width 8
Dimensions
Height Seated (Max) 1.2mm
Length 7mm
Width 7mm
Compliance
RoHS Status ROHS3 Compliant
