HDSP-713E

Broadcom Limited
RoHS
RoHS RoHS compliant
Package DIP
Category Optoelectronics / Display Modules - LED Dot Matrix and Cluster
Description Alphanumeric Displays Module 35LED Hi-Eff. Red Anode Column Cathode Row 12-Pin DIP
PDF
/
Buying Options
Total Price: USD $5.41
Unit Price: USD $5.406522
≥1 USD $5.406522
≥300 USD $2.157095
≥600 USD $2.086198
≥900 USD $2.049437
Inventory: 4658
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Viewing Area (height) 17.27mm
Height 6.35mm

Technical

Internal Connection Common Cathode Row, Common Anode Column
Dominant Wavelength 622 nm
Number of Characters 1
Wavelength 622 nm
Reverse Voltage 5V
Millicandela Rating 1.29mcd ~ 6.53mcd
Luminous Intensity 6.53 mcd
Test Current 50mA
Forward Current 23mA
Voltage - Forward (Vf) (Typ) 2.05V
Power Dissipation 75mW
Element Configuration Common Cathode
Configuration 5 x 7
Number of Elements 35
Depth 12.7mm
Number of Functions 1
Subcategory LED Displays
HTS Code 8531.20.00.40
Color Red
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Tin (Sn)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Size / Dimension 0.70Lx0.50W x 0.25 H 17.80mmx12.70mmx6.30mm
Series HDSP-71xE

Physical

Number of Pins 12
Package / Case DIP
Mount Through Hole

Supply Chain

Factory Lead Time 16 Weeks

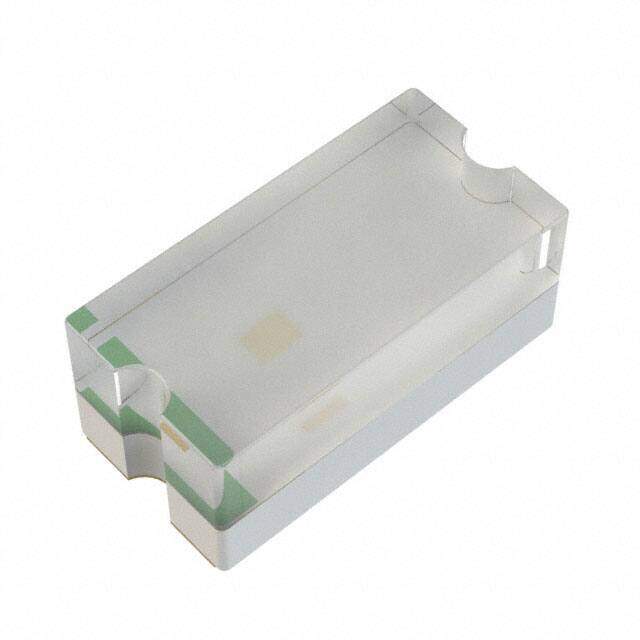

Recommended For You
