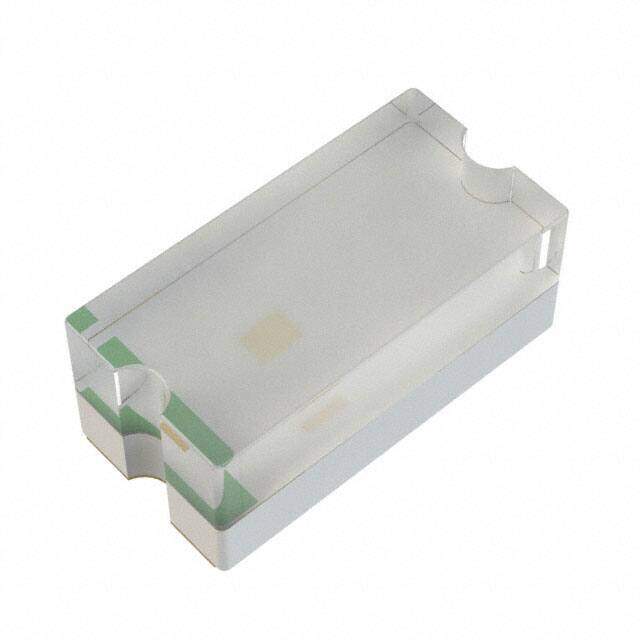

HSMW-C280 image
Favorite
HSMW-C280 image
Favorite

HSMW-C280

Broadcom Limited
RoHS
RoHS RoHS compliant
Package 0402 (1005 Metric)
Category Optoelectronics / LED Indication - Discrete
Description BROADCOM LIMITED HSMW-C280 LED, White, SMD, 20 mA, 3.9 V, 262.7 mcd
PDF
/
Buying Options
Total Price: USD $1.03
Unit Price: USD $1.0296
≥1 USD $1.0296
≥10 USD $0.65032
≥100 USD $0.48092
≥500 USD $0.441954
≥1000 USD $0.363968
≥3000 USD $0.34577
Inventory: 22537
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 13 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0402 (1005 Metric)
Number of Pins 2
Supplier Device Package 0402

Technical

Packaging Tape & Reel (TR)
Published 2014
Size / Dimension 1.00mm Lx0.50mm W
Part Status Active
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Color White
Configuration Standard
Voltage - Forward (Vf) (Typ) 3.3V
Viewing Angle 130°
Forward Current 20mA
Current - Test 20mA
Lens Style Rectangle with Flat Top
Lens Size 1.00mmx0.50mm
Forward Voltage 3.9V
Luminous Intensity 262.7 mcd
Millicandela Rating 263mcd
Lens Transparency Diffused
Lens Color White
Number of LEDs 1

Dimensions

Height 500μm
Length 1mm
Width 500μm
Height (Max) 0.50mm

Compliance

REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
