HCMS-2973
RoHS
RoHS compliant
RoHS compliantPackage DIP
Category Optoelectronics / Display Modules - LED Dot Matrix and Cluster
Description
LED DISPLAY, 8 CHAR, 0.2", GREEN
PDF
/
Buying Options
Total Price: USD $37.88
Unit Price: USD $37.8752
≥1 USD $37.8752
≥10 USD $29.59
≥100 USD $28.11072
Inventory: 160
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Plating Copper, Tin
Mount Through Hole
Package / Case DIP
Number of Pins 14
Technical
Published 2001
Series HCMS-29xx
Size / Dimension 1.69Lx0.45W x 0.21 H 42.93mmx11.43mmx5.33mm
JESD-609 Code e2
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Terminal Finish Tin/Copper (Sn/Cu)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Green
Voltage - Rated 5V
Additional Feature TTL COMPATIBLE
Subcategory LED Displays
Voltage - Rated DC 5V
Number of Functions 8
Depth 11.43mm
Lead Pitch 2.54mm
Operating Supply Voltage 5V
Number of Elements 280
Configuration 5 x 7
Row Spacing 7.62 mm
Interface Parallel, 8-Bit
Max Supply Voltage 5.5V
Min Supply Voltage 3V
Element Configuration Common Cathode
Power Dissipation 2.4W
Forward Current 800μA
Forward Voltage 5V
Luminous Intensity 114 μcd
Wavelength - Peak 568 nm
Power Consumption 2.4W
Number of Characters 8
Dominant Wavelength 574 nm
Character Width 2.54mm
Dimensions
Height 5.334mm
Viewing Area (height) 4.57mm
Character Height 5.08mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free

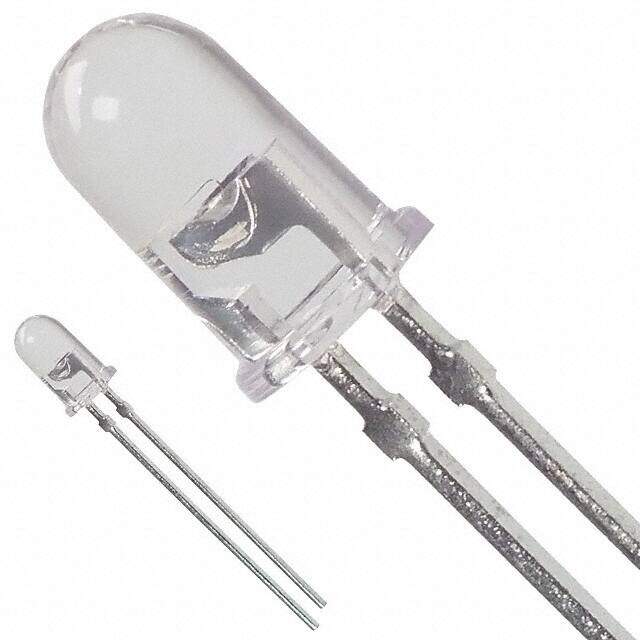

Alternative Model
