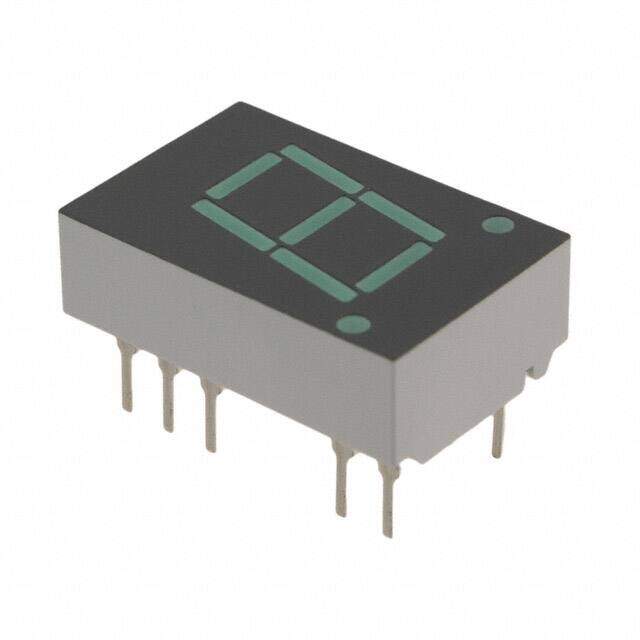

HDSP-4603
RoHS
RoHS compliant
RoHS compliantPackage 14-DIP (0.300, 7.62mm), 10 Leads
Category Optoelectronics / Display Modules - LED Character and Numeric
Description
AVAGO TECHNOLOGIES HDSP-4603 7-Segment LED Display, 1, 10.9 mm, Green, Common Cathode, 4 mcd, 10 mA
PDF
/
Buying Options
Total Price: USD $4.9
Unit Price: USD $4.9016
≥1 USD $4.9016
≥10 USD $3.46456
≥100 USD $2.83734
≥500 USD $2.391946
≥1000 USD $2.193981
≥3000 USD $2.103262
Inventory: 1133
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Plating Copper, Silver, Tin
Mount Through Hole
Package / Case 14-DIP (0.300, 7.62mm), 10 Leads
Number of Pins 14
Technical
Packaging Tube
Published 2001
Size / Dimension 0.750 Hx0.500W x 0.250 D 19.05mmx12.70mmx6.35mm
JESD-609 Code e1
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Max Operating Temperature 100°C
Min Operating Temperature -40°C
Color Green
Subcategory LED Displays
Number of Functions 1
Depth 12.7mm
Operating Supply Voltage 2.1V
Number of Elements 8
Element Configuration Common Cathode
Power Dissipation 105mW
Forward Current 10mA
Luminous Intensity 4 mcd
Millicandela Rating 4mcd
Wavelength - Peak 566nm
Power Consumption 105mW
Display Type 7-Segment
Reverse Voltage 50V
Forward Voltage-Max 2.5V
Number of Characters 1
Number of Segments 7
Digit/Alpha Size 0.43 11.00mm
Common Pin Common Cathode
Dominant Wavelength 571 nm
Character Width 7.01mm
Dimensions
Height 6.35mm
Viewing Area (height) 10.92mm
Character Height 10.9mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
