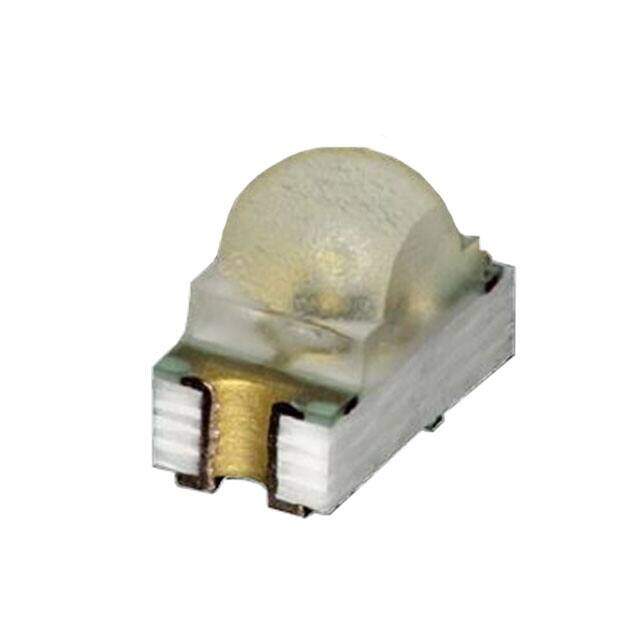

CSL0901UT
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
HIGH BRIGHTNESS LENS TYPE LED; C
PDF
/
Buying Options
Total Price: USD $0.43
Unit Price: USD $0.426457
≥1 USD $0.426457
≥10 USD $0.354509
≥100 USD $0.319189
Inventory: 28
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height (Max) 1.34mm
Technical
Wavelength - Dominant 620nm
Overall Height 1.24mm
Forward Current-Max 0.02A
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 280mcd
Luminous Intensity 185.0 mcd
Lens Size 1.14mm Dia
Lens Style Round with Domed Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Voltage - Forward (Vf) (Typ) 2.1V
Configuration SINGLE
Operating Temperature (Min) -40°C
Operating Temperature (Max) 100°C
Terminal Pitch 1.65mm
Number of Functions 1
Packing Method BULK
Color Red
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Size / Dimension 1.60mm Lx0.80mm W
Series CSL090x
Packaging Tape & Reel (TR)
Physical
Shape RECTANGULAR
Surface Mount YES
Package / Case 0603 (1608 Metric)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
