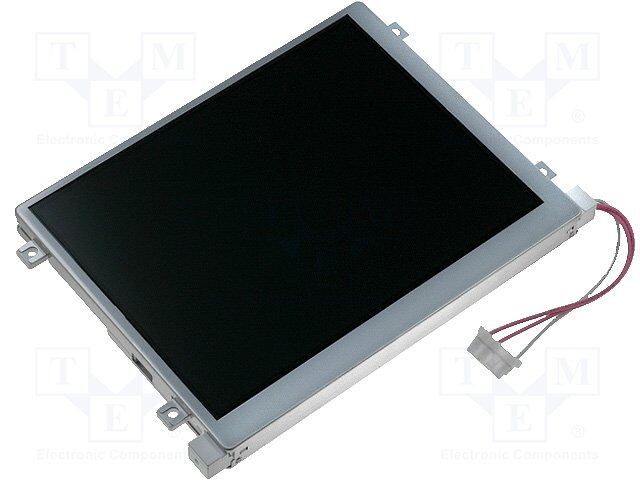

LQ064V3DG01
RoHS
/
Package /
Category Optoelectronics / Display Modules - LCD, OLED, Graphic
Description
LCD DISPLAY, RGB, 640X480
PDF
/
Inventory: 2484
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Pixel Height 204μm
Viewing Area (height) 97.92mm
Width 161.3mm
Technical
Pixel Width 204μm
Viewing Area (width) 130.56mm
Diagonal Size 6.4 in
Resolution (width) 640 pixel
Resolution (height) 480 pixel
Backlight Type CCFL
Dot Pitch 0.20mm Wx0.20mm H
Graphics Color Red, Green, Blue (RGB)
Diagonal Screen Size 6.4 162.56mm
Background Color White
Dot Pixels 640 x 480 (VGA)
Touchscreen No
Backlight CCFL
Display Mode Transmissive
Viewing Area 130.56mm W x 97.92mm H
Min Supply Voltage (DC) 3V
Max Supply Voltage (DC) 3.6V
Display Type TFT - Color
Luminous Intensity 350 cd
Nominal Supply Current 580mA
Leakage Current 1μA
Interface Parallel, 18-Bit (RGB)
Operating Supply Voltage 3.3V
Frequency 25.2MHz
Min Operating Temperature -30°C
Max Operating Temperature 80°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Published 2006
Packaging Bulk
Physical
Number of Pins 31
