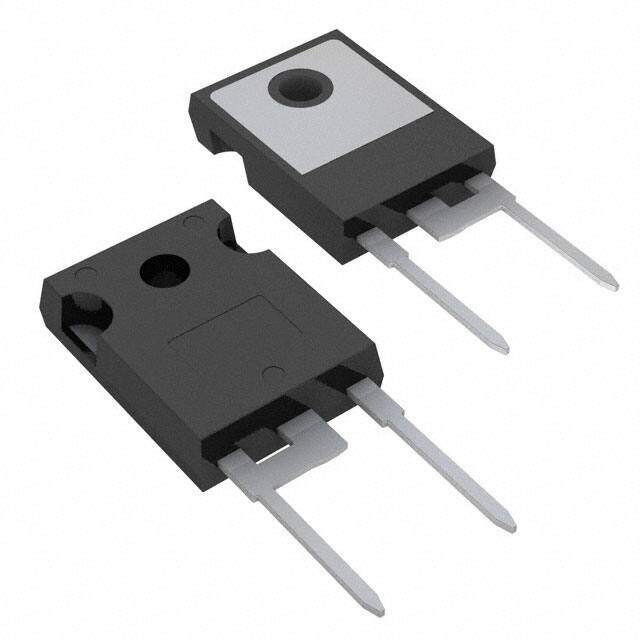

VS-30EPH03-N3
RoHS
RoHS compliant
RoHS compliantPackage TO-247-2
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GEN PURP 300V 30A TO247AC
PDF
/
Buying Options
Total Price: USD $5.24
Unit Price: USD $5.236
≥1 USD $5.236
≥10 USD $4.15008
≥100 USD $3.557224
≥500 USD $3.161998
≥1000 USD $2.707461
≥3000 USD $2.54936
Inventory: 1005
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case TO-247-2
Diode Element Material SILICON
Technical
Packaging Tube
Published 2017
Series FRED Pt?
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Additional Feature FREE WHEELING DIODE, LOW LEAKAGE CURRENT
HTS Code 8541.10.00.80
Terminal Position SINGLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PSFM-T2
Operating Temperature (Max) 175°C
Number of Elements 1
Configuration SINGLE
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Standard
Current - Reverse Leakage @ Vr 60μA @ 300V
Voltage - Forward (Vf) (Max) @ If 1.25V @ 30A
Case Connection CATHODE
Operating Temperature - Junction -65°C~175°C
Application ULTRA FAST RECOVERY
Voltage - DC Reverse (Vr) (Max) 300V
Max Reverse Voltage (DC) 300V
Average Rectified Current 30A
Number of Phases 1
Reverse Recovery Time 38 ns
Non-rep Pk Forward Current-Max 300A
Reverse Current-Max 60μA
Compliance
RoHS Status ROHS3 Compliant
