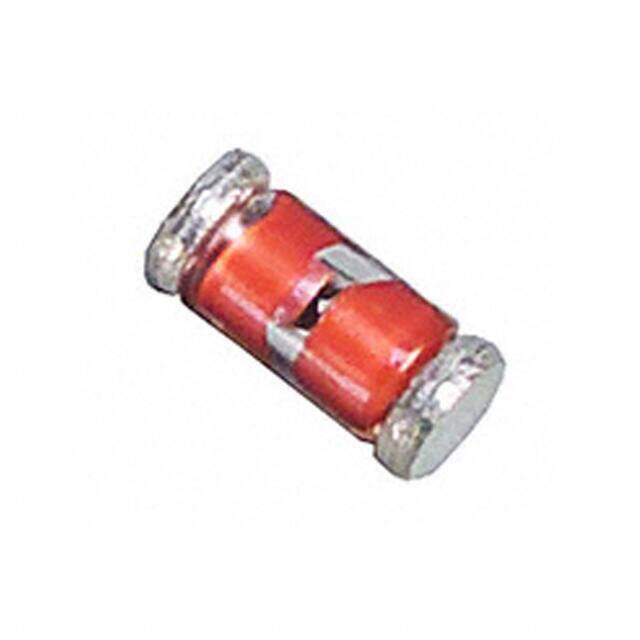

TMMBAT42FILM
RoHS
RoHS compliant
RoHS compliantPackage DO-213AA (Glass)
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE SCHOTTKY 30V 200MA MINMELF
PDF
/
Buying Options
Total Price: USD $0.26
Unit Price: USD $0.2552
≥1 USD $0.2552
≥10 USD $0.17424
≥100 USD $0.085272
≥500 USD $0.071104
≥1000 USD $0.049412
Inventory: 9559
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Lifecycle Status ACTIVE (Last Updated: 6 months ago)
Physical
Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount
Package / Case DO-213AA (Glass)
Number of Pins 2
Weight 4.535924g
Diode Element Material SILICON
Manufacturer Package Identifier MINIMELF
Technical
Packaging Tape & Reel (TR)
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Max Operating Temperature 125°C
Min Operating Temperature -65°C
HTS Code 8541.10.00.70
Capacitance 7pF
Subcategory Rectifier Diodes
Voltage - Rated DC 30V
Max Power Dissipation 200mW
Terminal Position END
Terminal Form WRAP AROUND
Peak Reflow Temperature (Cel) 260
Current Rating 350mA
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number TMMBAT4
Number of Elements 1
Polarity Standard
Element Configuration Single
Speed Small Signal =< 200mA (Io), Any Speed
Diode Type Schottky
Current - Reverse Leakage @ Vr 500nA @ 25V
Power Dissipation 200mW
Output Current 200mA
Voltage - Forward (Vf) (Max) @ If 1V @ 200mA
Case Connection ISOLATED
Forward Current 200mA
Max Reverse Leakage Current 500nA
Operating Temperature - Junction -65°C~125°C
Max Surge Current 4A
Current - Average Rectified (Io) 200mA DC
Forward Voltage 1V
Max Reverse Voltage (DC) 30V
Average Rectified Current 200mA
Reverse Recovery Time 5 ns
Peak Reverse Current 500nA
Max Repetitive Reverse Voltage (Vrrm) 30V
Capacitance @ Vr, F 7pF @ 1V 1MHz
Peak Non-Repetitive Surge Current 4A
Max Forward Surge Current (Ifsm) 4A
Recovery Time 5 ns
Outside Diameter 1.62 mm
Max Junction Temperature (Tj) 125°C
Dimensions
Height 1.7mm
Length 3.4mm
Width 1.62mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Alternative Model
