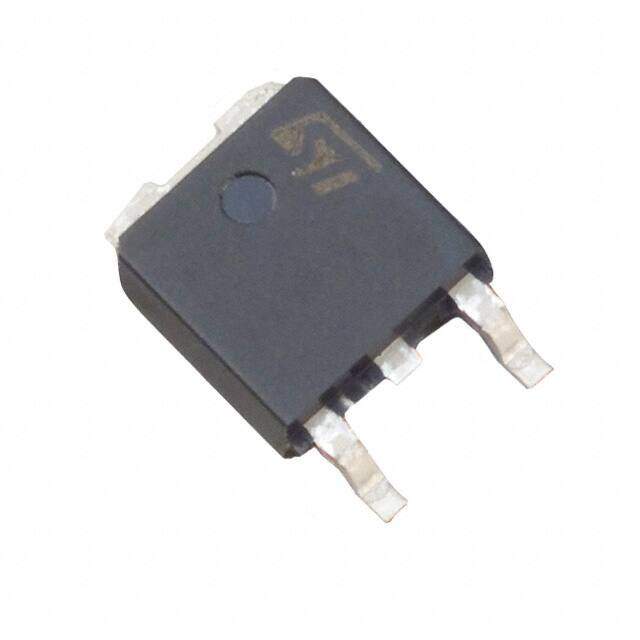

STTH506B
RoHS
RoHS compliant
RoHS compliantPackage TO-252-3, DPak (2 Leads + Tab), SC-63
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GEN PURP 600V 5A DPAK
PDF
/
Buying Options
Total Price: USD $0.76
Unit Price: USD $0.7562
≥1 USD $0.7562
≥10 USD $0.62035
≥100 USD $0.60135
≥500 USD $0.5814
≥1000 USD $0.5624
Inventory: 32955
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 6.2mm
Length 6.6mm
Height 2.4mm
Technical
Recovery Time 50 ns
Max Forward Surge Current (Ifsm) 55A
Reverse Voltage 600V
Peak Non-Repetitive Surge Current 55A
Max Repetitive Reverse Voltage (Vrrm) 600V
Peak Reverse Current 5μA
Reverse Recovery Time 50 ns
Number of Phases 1
Average Rectified Current 5A
Max Reverse Voltage (DC) 600V
Forward Voltage 1.85V
Application HIGH VOLTAGE ULTRA FAST RECOVERY
Output Current-Max 5A
Max Surge Current 55A
Operating Temperature - Junction 175°C Max
Forward Current 5A
Case Connection CATHODE
Voltage - Forward (Vf) (Max) @ If 1.85V @ 5A
Current - Reverse Leakage @ Vr 5μA @ 600V
Diode Type Standard
Speed Fast Recovery =< 500ns, > 200mA (Io)
Element Configuration Single
Number of Elements 1
Qualification Status Not Qualified
JESD-30 Code R-PSSO-G2
Pin Count 3
Base Part Number STTH506
Time@Peak Reflow Temperature-Max (s) 30
Reach Compliance Code not_compliant
Peak Reflow Temperature (Cel) 245
Terminal Form GULL WING
Subcategory Rectifier Diodes
HTS Code 8541.10.00.80
Min Operating Temperature -65°C
Max Operating Temperature 175°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Packaging Tube
Physical
Diode Element Material SILICON
Number of Pins 3
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
Mounting Type Surface Mount
Mount Surface Mount
