STPS8L30B
RoHS
RoHS compliant
RoHS compliantPackage TO-252-3, DPak (2 Leads + Tab), SC-63
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE SCHOTTKY 30V 8A DPAK
PDF
/
Buying Options
Total Price: USD $1.34
Unit Price: USD $1.34235
≥1 USD $1.34235
≥10 USD $1.102
≥100 USD $1.0678
≥500 USD $1.03265
≥1000 USD $0.99845
Inventory: 1435
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 6.2mm
Length 6.6mm
Height 2.4mm
Technical
Max Forward Surge Current (Ifsm) 75A
Peak Non-Repetitive Surge Current 75A
Max Repetitive Reverse Voltage (Vrrm) 30V
Peak Reverse Current 1mA
Number of Phases 1
Average Rectified Current 8A
Max Reverse Voltage (DC) 30V
Forward Voltage 630mV
Application POWER
Max Surge Current 75A
Operating Temperature - Junction 150°C Max
Max Reverse Leakage Current 1mA
Forward Current 8A
Case Connection CATHODE
Voltage - Forward (Vf) (Max) @ If 490mV @ 8A
Output Current 8A
Current - Reverse Leakage @ Vr 1mA @ 30V
Diode Type Schottky
Speed Fast Recovery =< 500ns, > 200mA (Io)
Element Configuration Single
Polarity Standard
Number of Elements 1
JESD-30 Code R-PSSO-G2
Pin Count 3
Base Part Number STPS8L
Time@Peak Reflow Temperature-Max (s) 30
Current Rating 8A
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Voltage - Rated DC 30V
Subcategory Rectifier Diodes
HTS Code 8541.10.00.80
Min Operating Temperature -65°C
Max Operating Temperature 150°C
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Packaging Tube
Physical
Diode Element Material SILICON
Number of Pins 3
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
Mounting Type Surface Mount
Mount Surface Mount

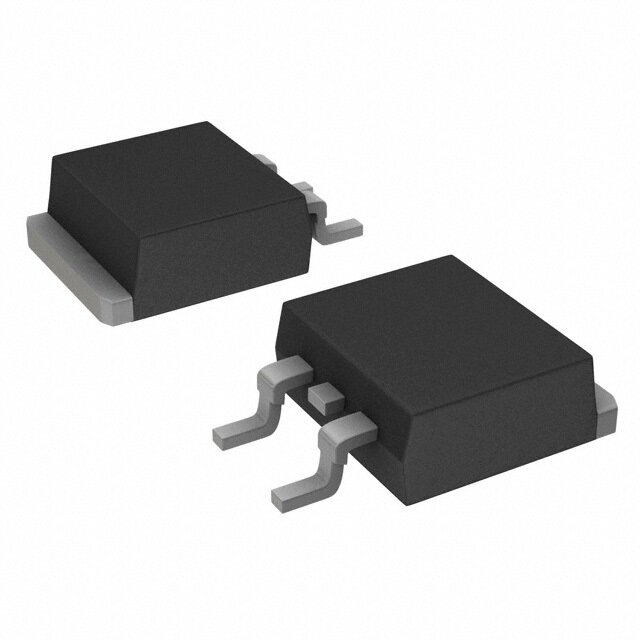

Alternative Model
