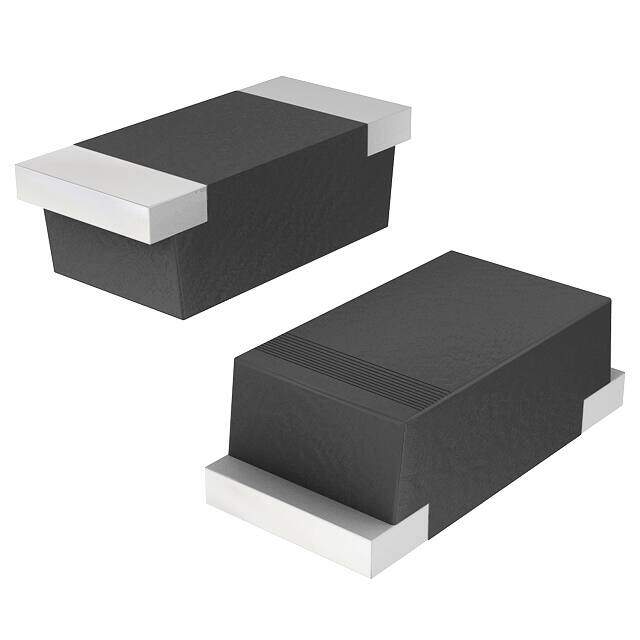

CFRMT101-HF
RoHS
/
Package SOD-123H
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE GEN PURP 50V 1A SOD123H
PDF
/
Inventory: 5158
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Non-rep Pk Forward Current-Max 25A
Capacitance @ Vr, F 15pF @ 4V 1MHz
Reverse Recovery Time 150ns
Average Rectified Current 1A
Max Reverse Voltage (DC) 50V
Current - Average Rectified (Io) 1A DC
Output Current-Max 1A
Operating Temperature - Junction -55°C~150°C
Voltage - Forward (Vf) (Max) @ If 1.3V @ 1A
Current - Reverse Leakage @ Vr 5μA @ 50V
Diode Type Standard
Speed Fast Recovery =< 500ns, > 200mA (Io)
Configuration SINGLE
Number of Elements 1
Operating Temperature (Max) 150°C
Time@Peak Reflow Temperature-Max (s) 30
Peak Reflow Temperature (Cel) 260
Subcategory Rectifier Diodes
HTS Code 8541.10.00.80
Terminal Finish Tin (Sn)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Published 2011
Packaging Tape & Reel (TR)
Physical
Package / Case SOD-123H
Mounting Type Surface Mount
Mount Surface Mount
