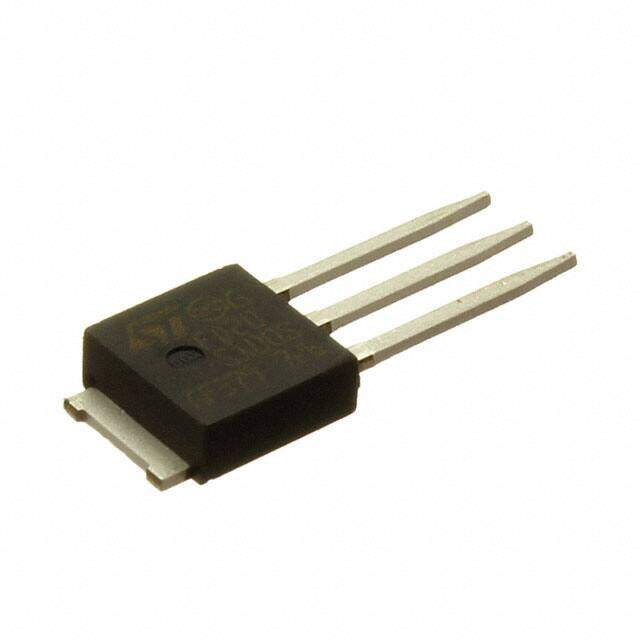

FERD20S100SH
RoHS
/
Package TO-251-3, IPak, Short Leads
Category Discrete Semiconductor Products / Diodes - Rectifiers - Single
Description
DIODE RECT 100V 20A I-PAK
PDF
/
Buying Options
Total Price: USD $0.94
Unit Price: USD $0.936691
≥1 USD $0.936691
≥10 USD $0.88367
≥100 USD $0.833658
≥500 USD $0.786461
≥1000 USD $0.741949
Inventory: 1449
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Reverse Current-Max 110μA
Rep Pk Reverse Voltage-Max 100V
Number of Phases 1
Voltage - DC Reverse (Vr) (Max) 100V
Application EFFICIENCY
Operating Temperature - Junction 175°C Max
Forward Current 20A
Case Connection CATHODE
Voltage - Forward (Vf) (Max) @ If 780mV @ 10A
Current - Reverse Leakage @ Vr 100μA @ 100V
Diode Type FERD (Field Effect Rectifier Diode)
Speed Fast Recovery =< 500ns, > 200mA (Io)
Configuration SINGLE
Number of Elements 1
Operating Temperature (Max) 175°C
JESD-30 Code R-PSIP-T3
Base Part Number FERD20
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position SINGLE
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Packaging Tube
Physical
Diode Element Material SILICON
Surface Mount NO
Package / Case TO-251-3, IPak, Short Leads
Mounting Type Through Hole
Supply Chain
Lifecycle Status NRND (Last Updated: 7 months ago)
